Summary

Mann Filter W 13 010 Replaces the Mann Filter W13010

W13010
W13010
OE Quality
Range
Range
Watch video
▶
Representative product image Product image feedback

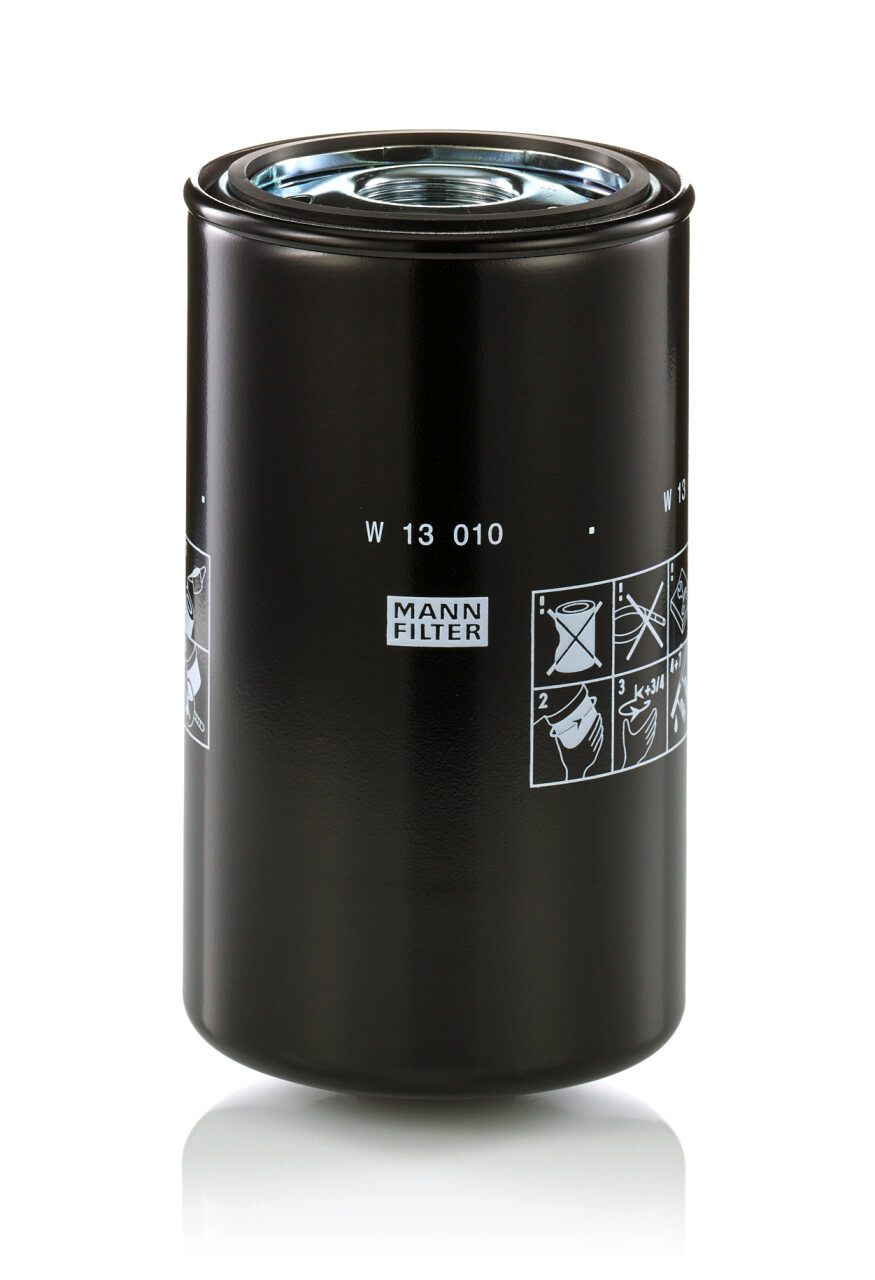

Mann Filter W 13 010 Hydraulics

Brand: Mann Filter
Description

MANN-FILTER spin-on hydraulic filters offer maximum filtration performance and thus ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.

Price Match
$ 1,290.00
Italy
8421.23.00
1.36 kg
0.0038 m³
France
8421.99.90
1.95 kg
0.0038 m³
Italy
8421.99.90
Shipping Terms

Description

MANN-FILTER spin-on hydraulic filters offer maximum filtration performance and thus ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.

Specification

StyleHydraulics
Dimension A 129.0 mm
Dimension G G 1 1/4
Dimension H 228.0 mm
Mann Filter Brand Logo

Mann Filter Product

Genuine Mann Filter W 13 010

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
30µ @ β2
Efficiency 2
Style Spin-On Filter
Outer Diameter 129.0 mm
Inner Diameter
Length 228.0 mm
Media Type Cellulose
Flow Direction
Thread 1 1/4" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

0.3 BAR
Collapse Pressure 12 BAR
Seal Nitrile
Temperature Range -30 - +100°C
