MicroFit MFHSU70301 Replaces the Pall UE219AS04H

UE219AS04H
UE219AS04H
Representative product image Product image feedback

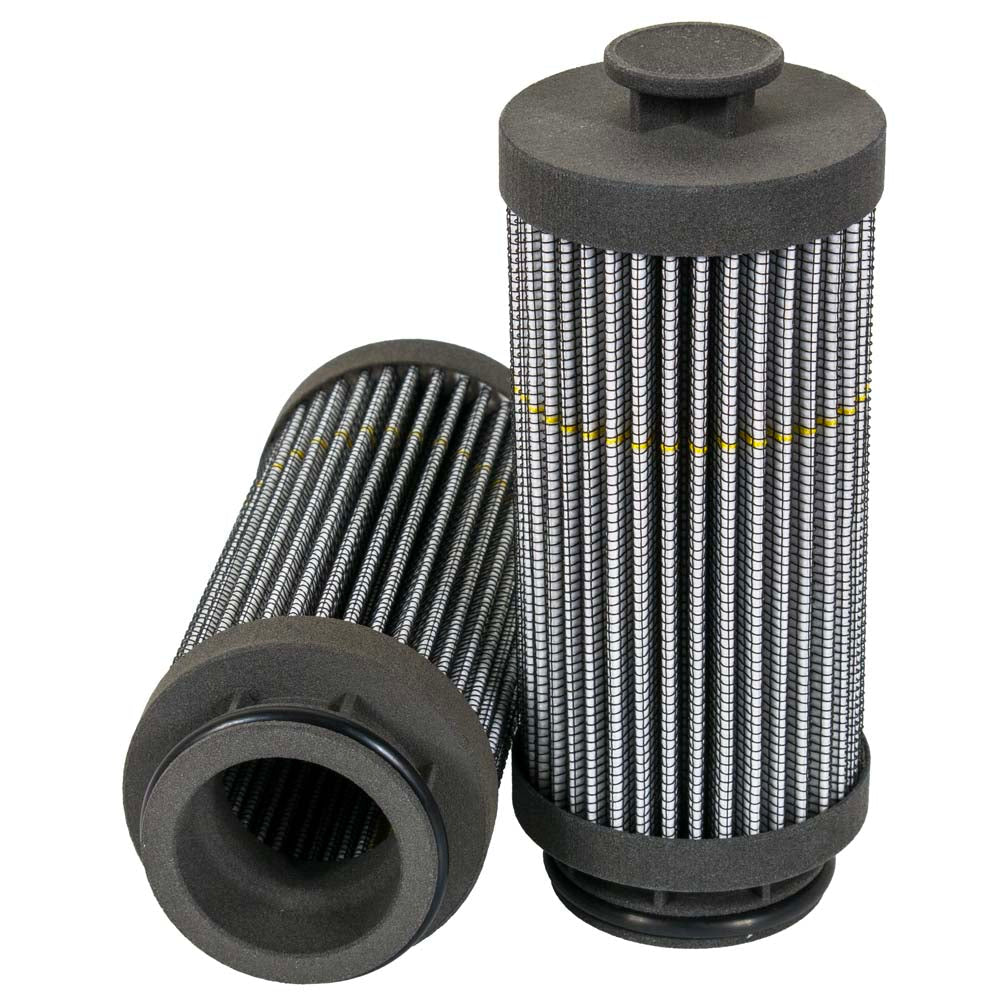

MicroFit® UltraGen III MFHSU70301 Suction Filter | Replaces the Pall UE219AS04H

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHSU70301 is the MICROFIT® approved replacement to the Pall UE219AS04H. Engineered and manufactured in Great Britain the MFHSU70301

Price Match
$ 1,425.00
0.33 kg
0.0004 m³
1953 pcs
United Kingdom
8421.99.90
0.15 kg
0.0005 m³
1953 pcs
United States
8421.29.80.90
0.16 kg
0.0004 m³
1953 pcs
Italy
8421.99.90
0.14 kg
0.0007 m³
1953 pcs
France
8421.99.90
1953 pcs
United States
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHSU70301 is the MICROFIT® approved replacement to the Pall UE219AS04H. Engineered and manufactured in Great Britain the MFHSU70301

Specification

StyleSuction Filter
MediaGlass Fiber (Anti-Static)
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 54.0 mm
Inner Diameter 42.5 mm
Length 133.0 mm
Seal MaterialNitrile
Temperature Range -30 - +100°C
Pall Brand Logo

Same Fit-Form & Function

As the Genuine Pall UE219AS04H

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Suction Filter
Outer Diameter 54.0 mm
Inner Diameter 42.5 mm
Length 133.0 mm
Media Type Glass Fiber (Anti-Static)
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C
