Summary

Stauff SUS-102-G24-200-125-P-O Replacement Suction Strainer

Stauff SUS-102-G24-200-125-P-O
Stauff SUS-102-G24-200-125-P-O
Representative product image Product image feedback

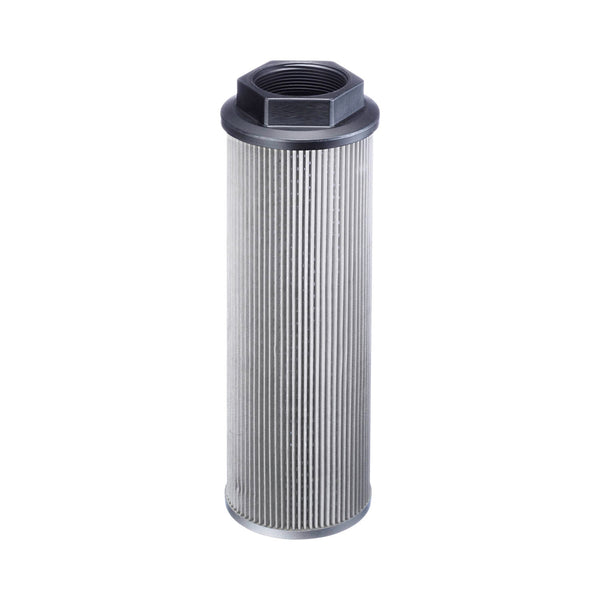

Stauff SUS-102-G24-200-125-P-O Suction Strainer

Brand: Stauff
Description

Suction Strainer with Polyamide End Cap Micron Rating: 125 µm without Bypass Thread: 1 1/2"BSP

Price Match
$ 709.00
Germany
8421.99.90
0.5 kg
0.0015 m³
Italy
8421.99.90
0.44 kg
0.0024 m³
France
8421.99.90
Germany
8421.99.90
Shipping Terms

Description

Suction Strainer with Polyamide End Cap Micron Rating: 125 µm without Bypass Thread: 1 1/2"BSP

Specification

StyleSuction Strainer
MediaWire Mesh
Efficiency 1125µ
Outer Diameter 86.0 mm
Length 200.0 mm
Thread1 1/2" BSP
Δ Collapse Pressure 1 bar
Temperature Range -30 - +100°C
Stauff Brand Logo

Stauff Product

Genuine Stauff SUS-102-G24-200-125-P-O

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
125µ
Efficiency 2
Style Suction Strainer
Outer Diameter 86.0 mm
Inner Diameter
Length 200.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread 1 1/2" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 1 BAR
Seal
Temperature Range -30 - +100°C
