Stauff SUS-088-G24-140-125-P-O Replacement Suction Strainer

Stauff SUS-088-G24-140-125-P-O
Stauff SUS-088-G24-140-125-P-O

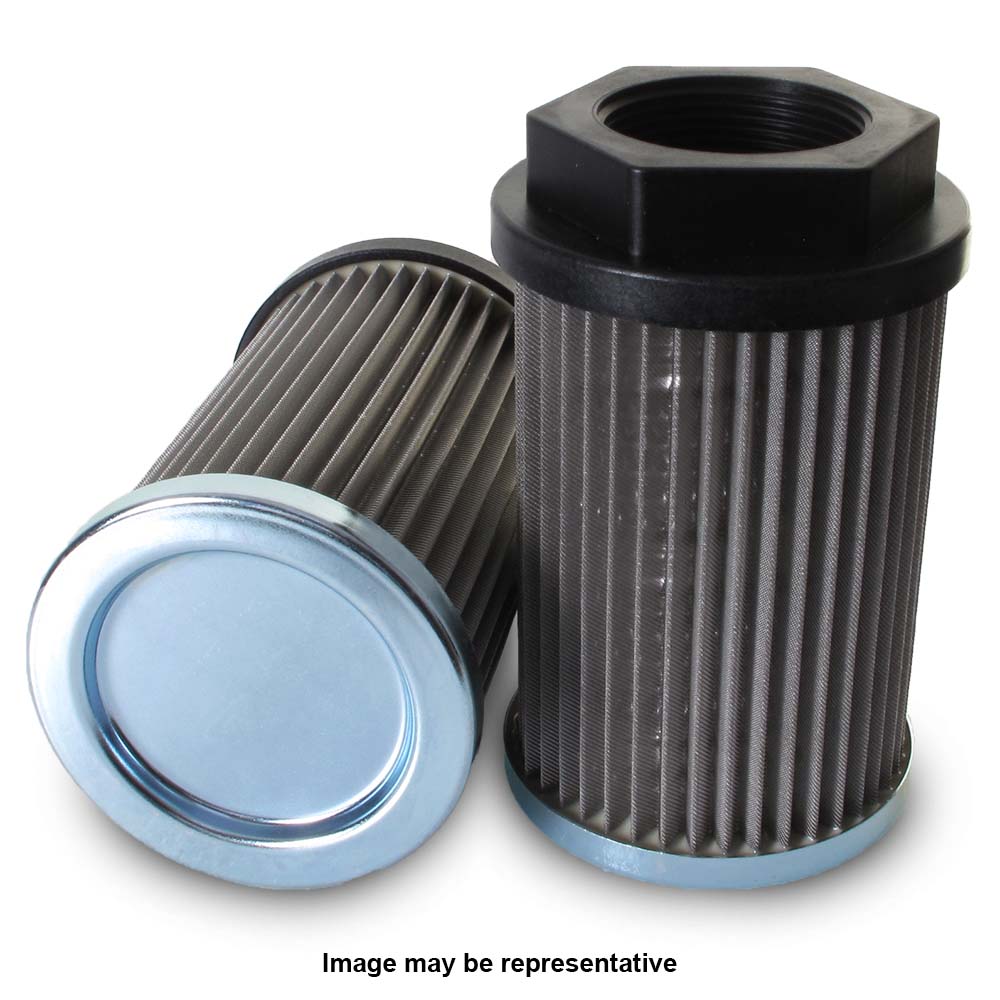

Representative product image Product image feedback

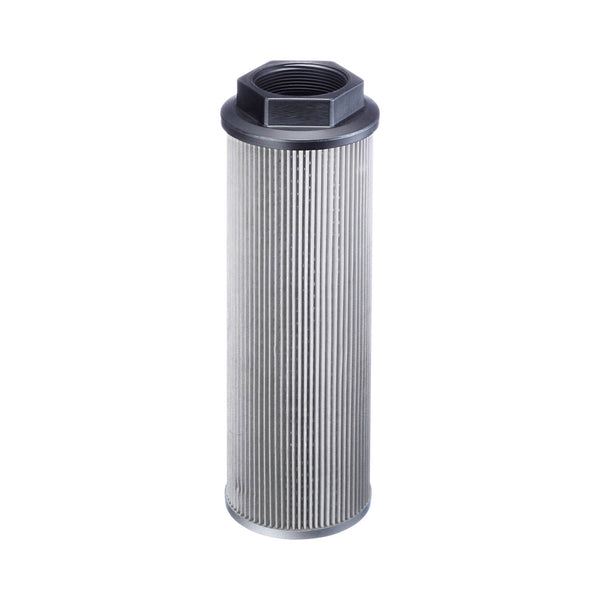

Stauff SUS-088-G24-140-125-P-O Suction Strainer

Brand: Stauff
Description

Replacement Filter Element Suction Strainer Micron Rating: 125 µm Material: Stainless Mesh Outer Diameter (mm): 88 Length (mm): 140 β ratio >2

Price Match
$ 568.00
288 pcs
Germany
8421.99.90
0.35 kg
0.001 m³
288 pcs
Italy
8421.99.90
0.3 kg
0.0014 m³
288 pcs
France
8421.99.90
0.47 kg
0.0031 m³
288 pcs
United States
8421.29.80.90
Shipping Terms

Description

Replacement Filter Element Suction Strainer Micron Rating: 125 µm Material: Stainless Mesh Outer Diameter (mm): 88 Length (mm): 140 β ratio >2

Specification

StyleSuction Strainer
MediaWire Mesh
Efficiency 1125µ
Outer Diameter 86.0 mm
Length 139.0 mm
Thread1 1/2" BSP
Δ Collapse Pressure 1 bar
Temperature Range -30 - +100°C
Stauff Brand Logo

Stauff Product

Genuine Stauff SUS-088-G24-140-125-P-O

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
125µ
Efficiency 2
Style Suction Strainer
Outer Diameter 86.0 mm
Inner Diameter
Length 139.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread 1 1/2" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 1 BAR
Seal
Temperature Range -30 - +100°C
