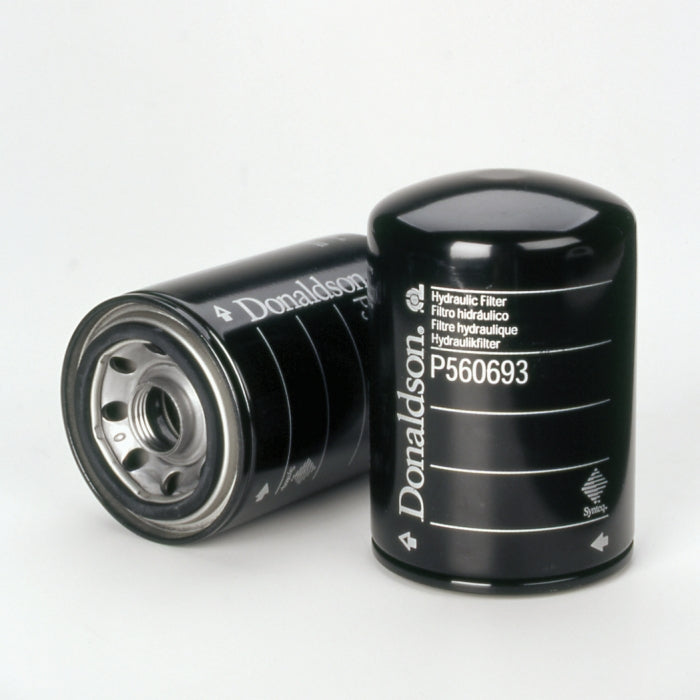

Donaldson P560693 Hydraulic Filter, Spin-On | Replaces the LHA SPE15-BTA-10

Brand: Donaldson
Description

Genuine Donaldson P560693 Hydraulic Filter, Spin-On provides dependable protection for hydraulic systems by efficiently removing particulates and contaminants. It ensures clean hydraulic fluid, promoting smooth operation and extending the lifespan of critical system components.

With its easy-to-install spin-on design, this filter minimizes downtime and maintenance costs. Its durable construction and advanced filtration media make it a trusted choice for industrial and mobile hydraulic applications requiring reliable performance.

Price Match
$ 561.00
0.52 kg
0.0011 m³
12 pcs
840 pcs
Mexico
8421.29.80.90
0.68 kg
0.0014 m³
840 pcs
France
8421.99.90
0.67 kg
0.0014 m³
840 pcs
Italy
8421.99.90
0.67 kg
0.002 m³
6 pcs
840 pcs
Mexico
8421.23.00
Shipping Terms

Description

Genuine Donaldson P560693 Hydraulic Filter, Spin-On provides dependable protection for hydraulic systems by efficiently removing particulates and contaminants. It ensures clean hydraulic fluid, promoting smooth operation and extending the lifespan of critical system components.

With its easy-to-install spin-on design, this filter minimizes downtime and maintenance costs. Its durable construction and advanced filtration media make it a trusted choice for industrial and mobile hydraulic applications requiring reliable performance.

Specification

StyleSpin-On Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 96.0 mm
Length 147.0 mm
Thread1"-12 UNF
Δ Collapse Pressure 12 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine LHA SPE15-BTA-10

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Spin-On Filter
Outer Diameter 96.0 mm
Inner Diameter
Length 147.0 mm
Media Type Glass Fiber
Flow Direction
Thread 1"-12 UNF
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 12 BAR
Seal Nitrile
Temperature Range -30 - +100°C
