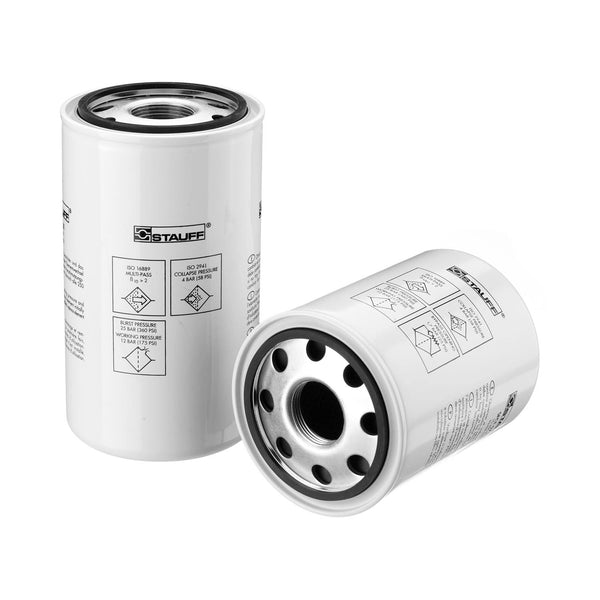

Stauff SFC-5703-AE Replacement Spin-On Filter

Stauff SFC-5703-AE
Stauff SFC-5703-AE
Representative product image Product image feedback

Stauff SFC-5703-AE Spin-On Filter

Brand: Stauff
Description

Replacement Filter Element Spin-On Filter Cartridge Micron Rating: 3 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 132 Length (mm): 180 Sealing: NBR, β ratio >200

Price Match
$ 1,958.00
160 pcs
Germany
8421.99.90
1.6 kg
0.0047 m³
160 pcs
Italy
8421.29.80.90
1.39 kg
0.003 m³
160 pcs
Italy
8421.99.90
1.44 kg
0.0039 m³
160 pcs
France
8421.99.90
Shipping Terms

Description

Replacement Filter Element Spin-On Filter Cartridge Micron Rating: 3 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 132 Length (mm): 180 Sealing: NBR, β ratio >200

Specification

StyleSpin-On Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 129.0 mm
Length 182.0 mm
Thread1 1/4" BSP
Δ Collapse Pressure 12 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Stauff Brand Logo

Stauff Product

Genuine Stauff SFC-5703-AE

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Spin-On Filter
Outer Diameter 129.0 mm
Inner Diameter
Length 182.0 mm
Media Type Glass Fiber
Flow Direction
Thread 1 1/4" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 12 BAR
Seal Nitrile
Temperature Range -30 - +100°C
