MicroFit MFHLP30823 Replaces the Schroeder SBF10505Z10V

MICROFIT MFHLP30823
MICROFIT MFHLP30823
Representative product image Product image feedback

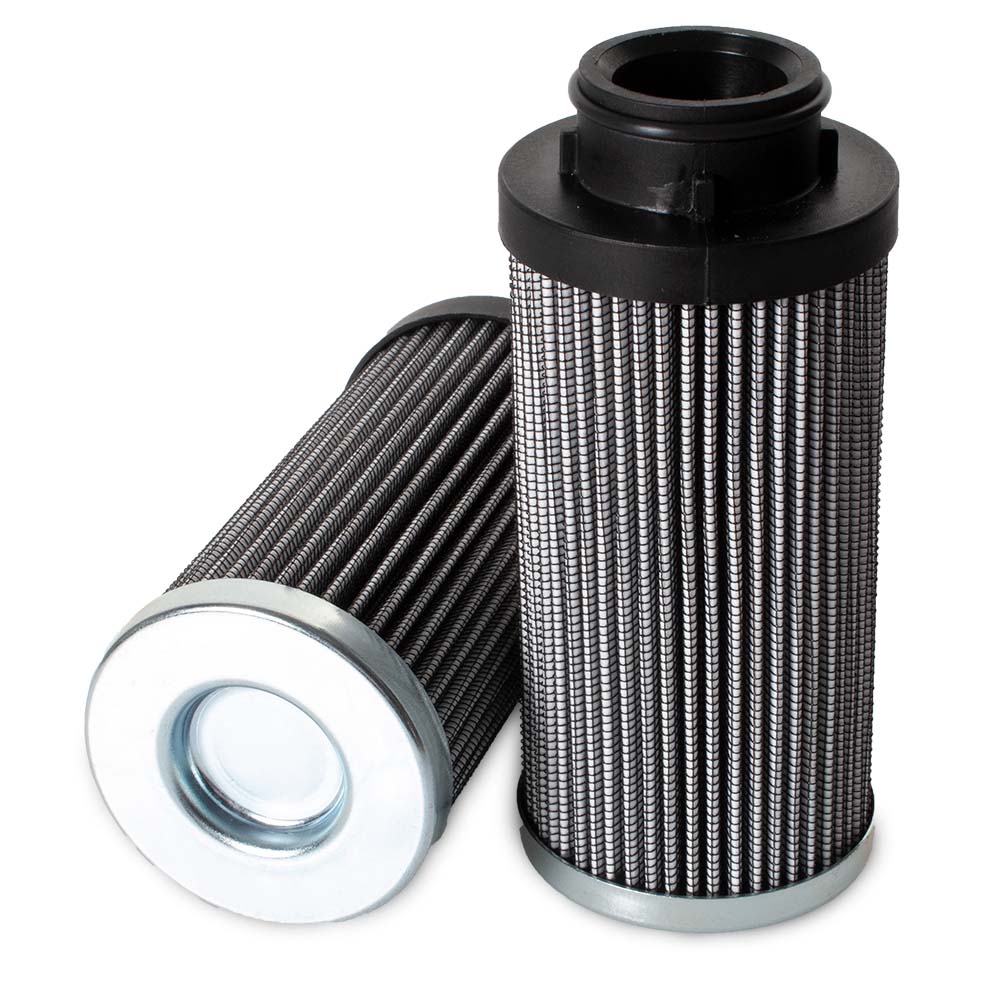

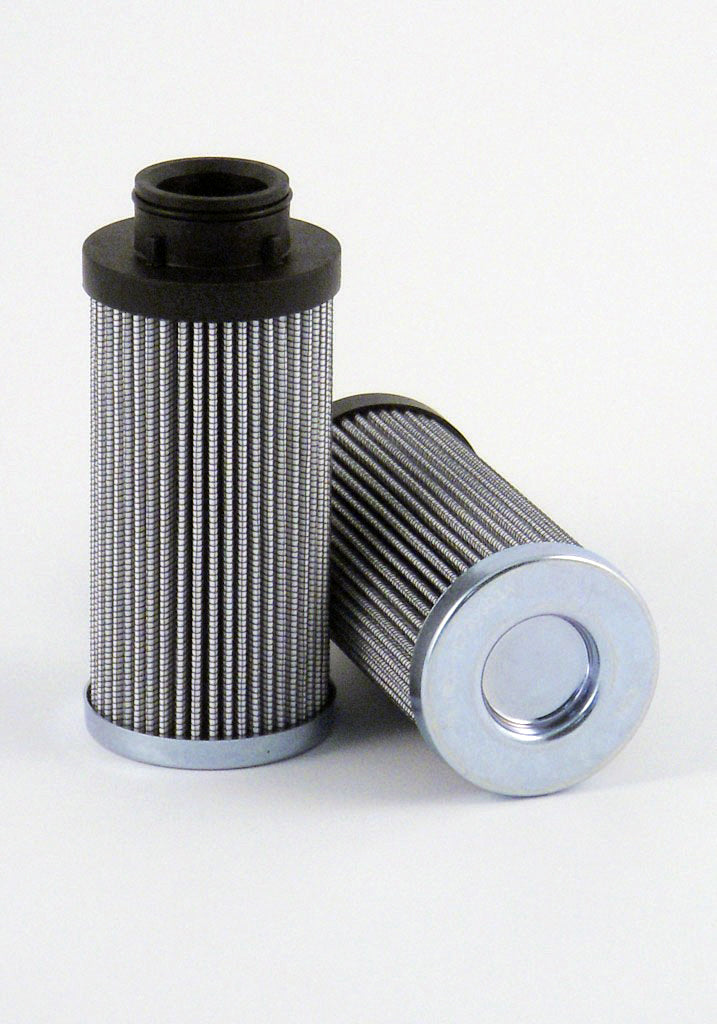

MicroFit® UltraGen III MFHLP30823 Pressure Filter | Replaces the Schroeder SBF10505Z10V

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP30823 is the MICROFIT® approved replacement to the Schroeder SBF10505Z10V. Engineered and manufactured in Great Britain the MFHLP30823

Price Match
$ 1,635.00
0.57 kg
0.0005 m³
1176 pcs
United Kingdom
8421.99.90
0.23 kg
0.0012 m³
1176 pcs
United States
8421.29.80.90
0.26 kg
0.0005 m³
1176 pcs
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP30823 is the MICROFIT® approved replacement to the Schroeder SBF10505Z10V. Engineered and manufactured in Great Britain the MFHLP30823

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 60.0 mm
Inner Diameter 35.7 mm
Length 135.0 mm
Δ Collapse Pressure 21 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Schroeder Brand Logo

Same Fit-Form & Function

As the Genuine Schroeder SBF10505Z10V

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 60.0 mm
Inner Diameter 35.7 mm
Length 135.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 21 BAR
Seal Viton
Temperature Range -25 - +120°C
