MicroFit MFHLP32322 Replaces the Argo-Hytos S3081700K1

S3081700K1
S3081700K1

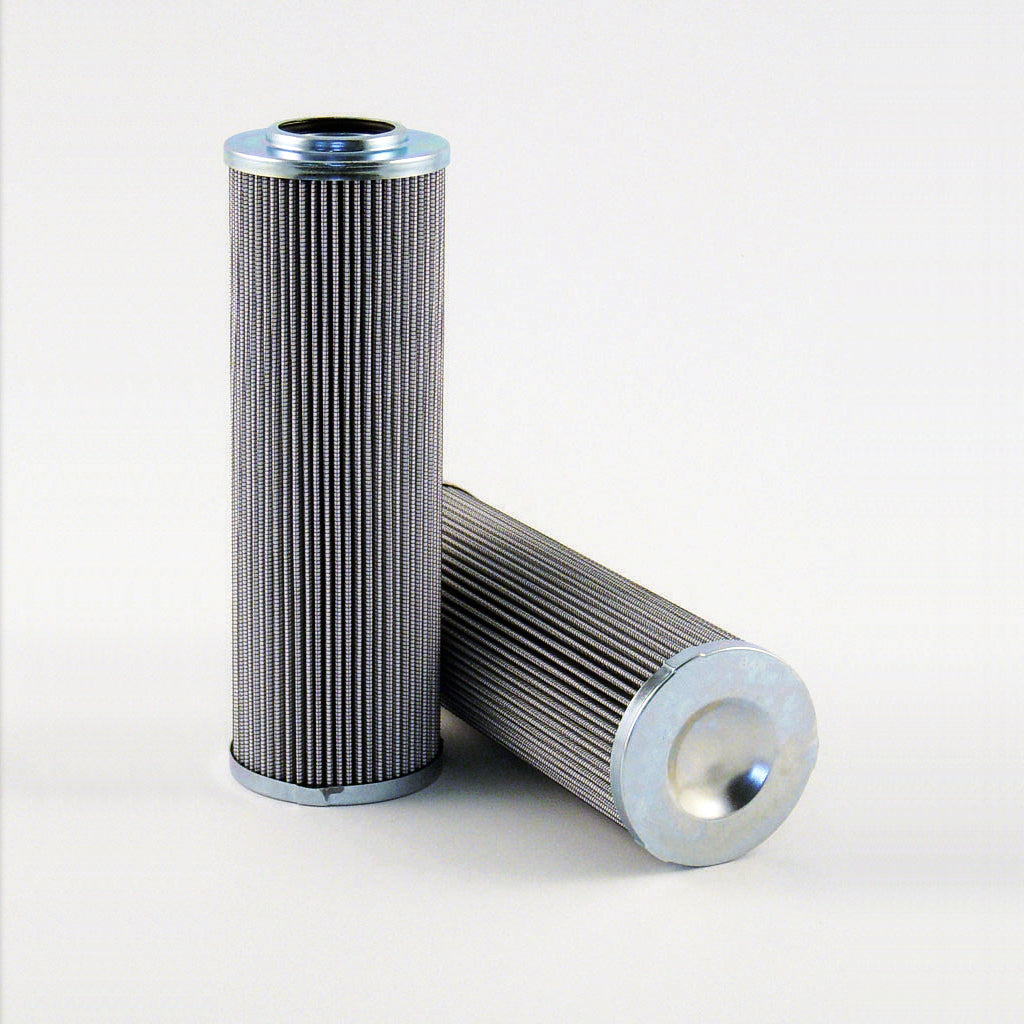

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP32322 Pressure Filter | Replaces the Argo-Hytos S3081700K1

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP32322 is the MICROFIT® approved replacement to the Argo Hytos S3081700K1. Engineered and manufactured in Great Britain the MFHLP32322

Price Match
$ 2,192.00
1.1 kg
0.001 m³
United Kingdom
8421.99.90
0.5 kg
0.0016 m³
France
8421.99.90
0.41 kg
0.0018 m³
Italy
8421.29.80.90
0.23 kg
0.001 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP32322 is the MICROFIT® approved replacement to the Argo Hytos S3081700K1. Engineered and manufactured in Great Britain the MFHLP32322

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 160µ
Outer Diameter 78.0 mm
Inner Diameter 40.5 mm
Length 170.0 mm
Δ Collapse Pressure 21 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Argo-Hytos S3081700K1

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
60µ
Efficiency 2
Style Pressure Filter
Outer Diameter 78.0 mm
Inner Diameter 40.5 mm
Length 170.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 21 BAR
Seal Nitrile
Temperature Range -30 - +100°C
