Stauff RE-046-G-20-B/4 Replaces the Stauff RE046G20B4

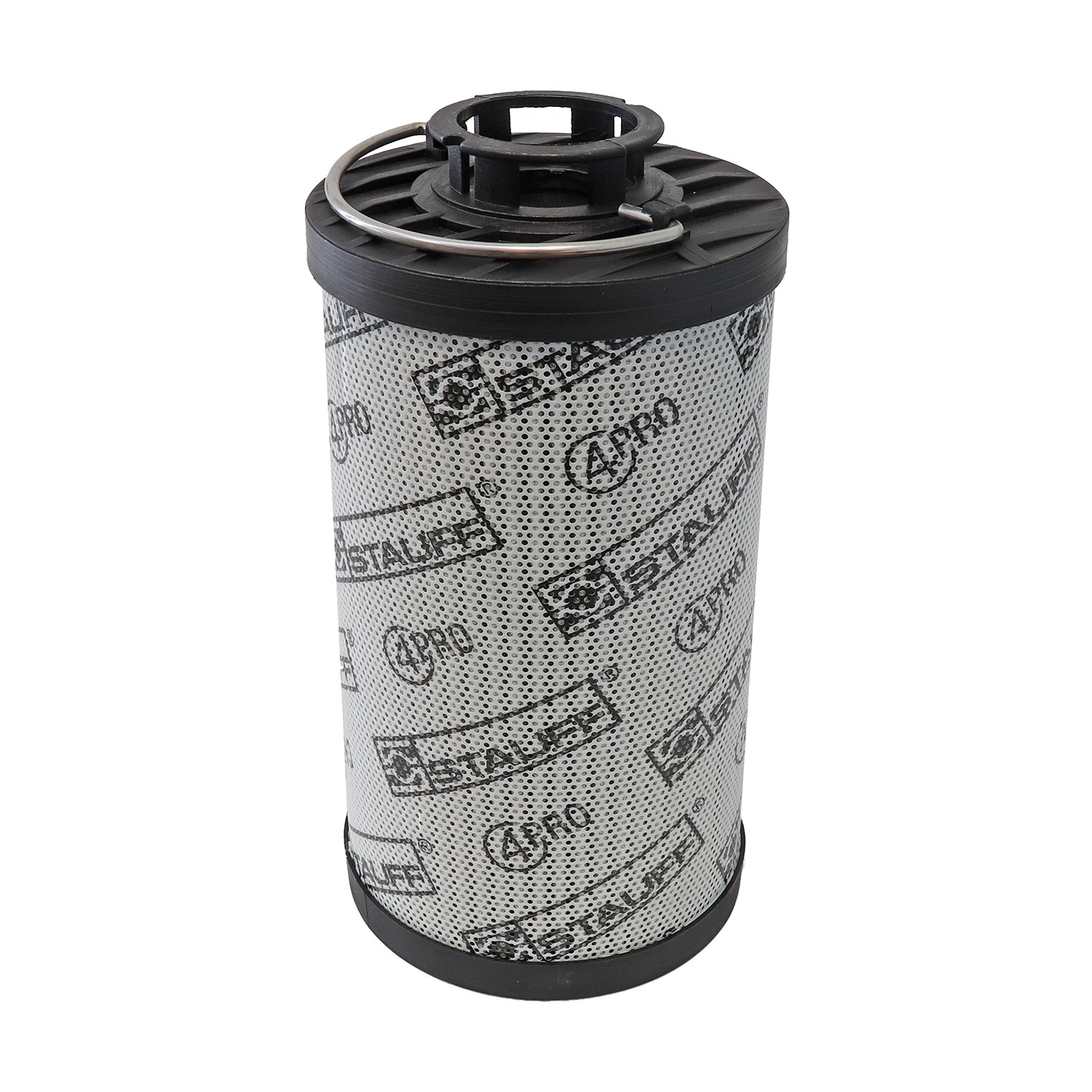

Stauff RE-046-G-20-B/4 Special Filter
RE-046-G-20-B/4
Stauff
Stauff
Brand:
Stauff
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 60 Inner Diameter (mm): 34,2 Length (mm): 229 Sealing: NBR, β ratio >200
Regular price
$ 1,462.00
Unit price
per
Germany
8421.99.90
0.34 kg
0.0016 m³
France
8421.99.90
0.88 kg
0.0008 m³
United Kingdom
8421.99.90
0.4 kg
0.0008 m³
Italy
8421.99.90
Germany
8421.99.90
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 60 Inner Diameter (mm): 34,2 Length (mm): 229 Sealing: NBR, β ratio >200Specification
| Style | Return Filter |
| Media | Glass Fiber |
| Efficiency 1 | 20µ @ β200 |
| Efficiency 2 | 22µ @ β1000 |
| Outer Diameter | 60.0 mm |
| Inner Diameter | 34.2 mm |
| Length | 228.5 mm |
| Bypass Pressure | 3.0 BAR bar |
| Δ Collapse Pressure | 20 bar |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
Stauff Product
Genuine Stauff RE-046-G-20-B/4
Inspected to ISO 9001:2015
See Our Certification
Free 45-Day Returns
Return Policy
