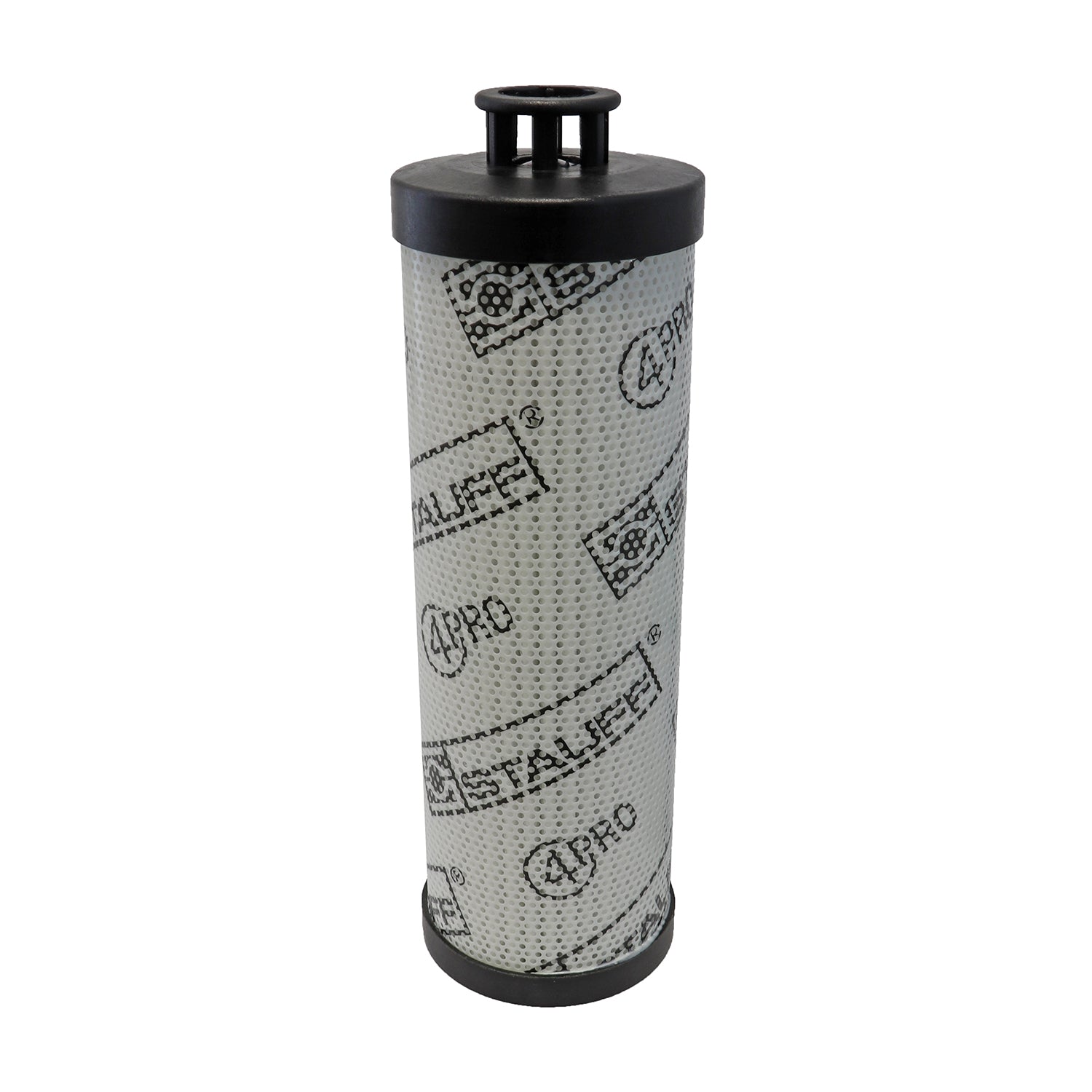

Stauff RE-030-G-05-B/4 Replaces the Stauff RE030E05B
Stauff RE-030-G-05-B/4 Return Filter | Replaces the Stauff RE030E05B
RE-030-G-05-B/4
Stauff
Stauff RE030E05B
Stauff
Stauff RE030E05B
Brand:
Stauff
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 5 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 51,5 Inner Diameter (mm): 22,3 Length (mm): 170 Sealing: NBR, β ratio >200
Regular price
$ 1,588.00
Unit price
per
146 pcs
Germany
8421.99.90
0.22 kg
0.0005 m³
146 pcs
Italy
8421.99.90
0.22 kg
0.0006 m³
146 pcs
France
8421.99.90
0.24 kg
0.0008 m³
146 pcs
Canada
8421.29.80.90
0.22 kg
146 pcs
United Kingdom
8421.99.90
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 5 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 51,5 Inner Diameter (mm): 22,3 Length (mm): 170 Sealing: NBR, β ratio >200Specification
| Style | Return Filter |
| Media | Glass Fiber |
| Efficiency 1 | 5µ @ β200 |
| Efficiency 2 | 7µ @ β1000 |
| Outer Diameter | 52.0 mm |
| Inner Diameter | 22.2 mm |
| Length | 169.0 mm |
| Bypass Pressure | 3.0 BAR bar |
| Δ Collapse Pressure | 20 bar |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
Stauff Product
Genuine Stauff RE-030-G-05-B/4
Inspected to ISO 9001:2015
See Our Certification
Free 45-Day Returns
Return Policy
