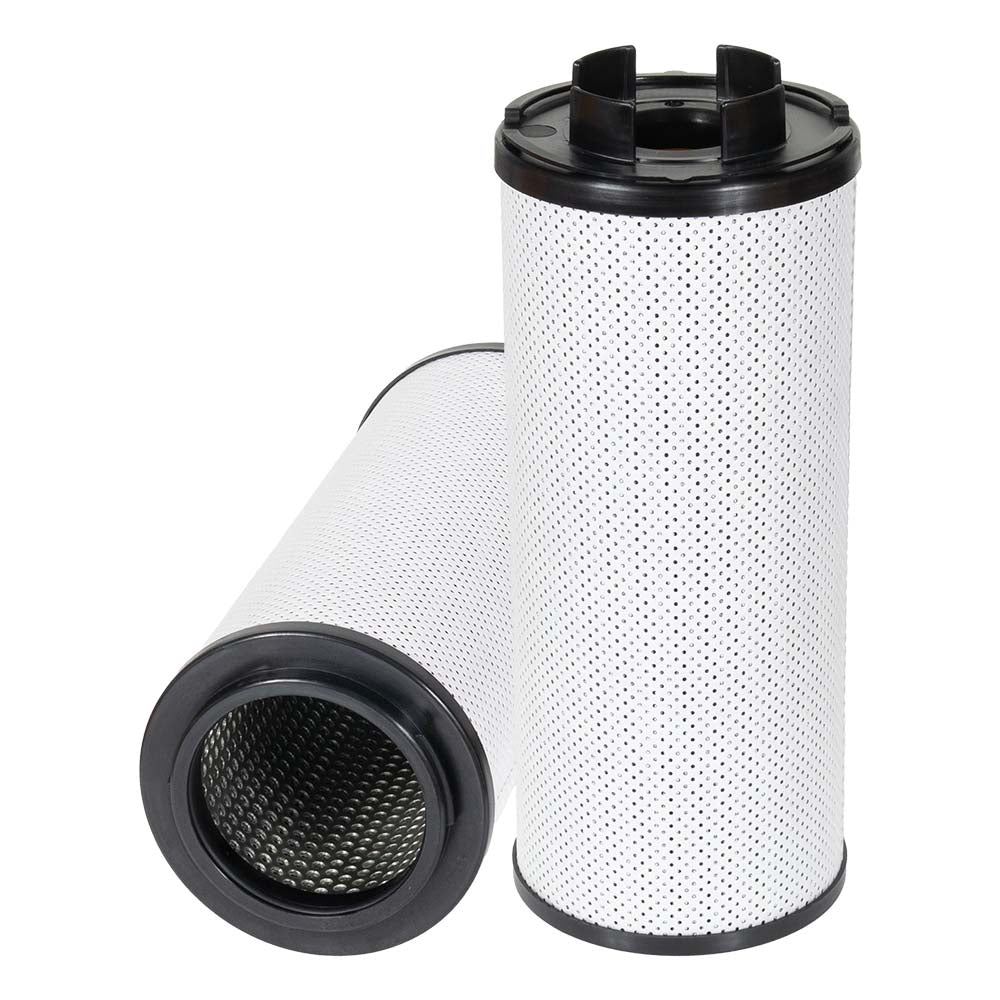

Stauff RE-250-G-10-B/5 Replacement Return Filter
Stauff RE-250-G-10-B/5 Return Filter
RE-250-G-10-B/5
Stauff
Stauff
Brand:
Stauff
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 143 Inner Diameter (mm): 96,1 Length (mm): 364 Sealing: NBR, β ratio >200
Regular price
$ 6,157.00
Unit price
per
Germany
8421.99.90
2.5 kg
0.0127 m³
France
8421.99.90
3.62 kg
0.0075 m³
Italy
8421.99.90
3.62 kg
United Kingdom
8421.99.90
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 143 Inner Diameter (mm): 96,1 Length (mm): 364 Sealing: NBR, β ratio >200Specification
| Style | Return Filter |
| Media | Glass Fiber |
| Efficiency 1 | 10µ @ β200 |
| Efficiency 2 | 12µ @ β1000 |
| Outer Diameter | 143.5 mm |
| Inner Diameter | 96.5 mm |
| Length | 363.0 mm |
| Bypass Pressure | 3.0 BAR bar |
| Δ Collapse Pressure | 20 bar |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
Stauff Product
Genuine Stauff RE-250-G-10-B/5
