MicroFit MFHLP30488 Replaces the Parker PR3144

PR3144
PR3144
Verified product image Product image feedback

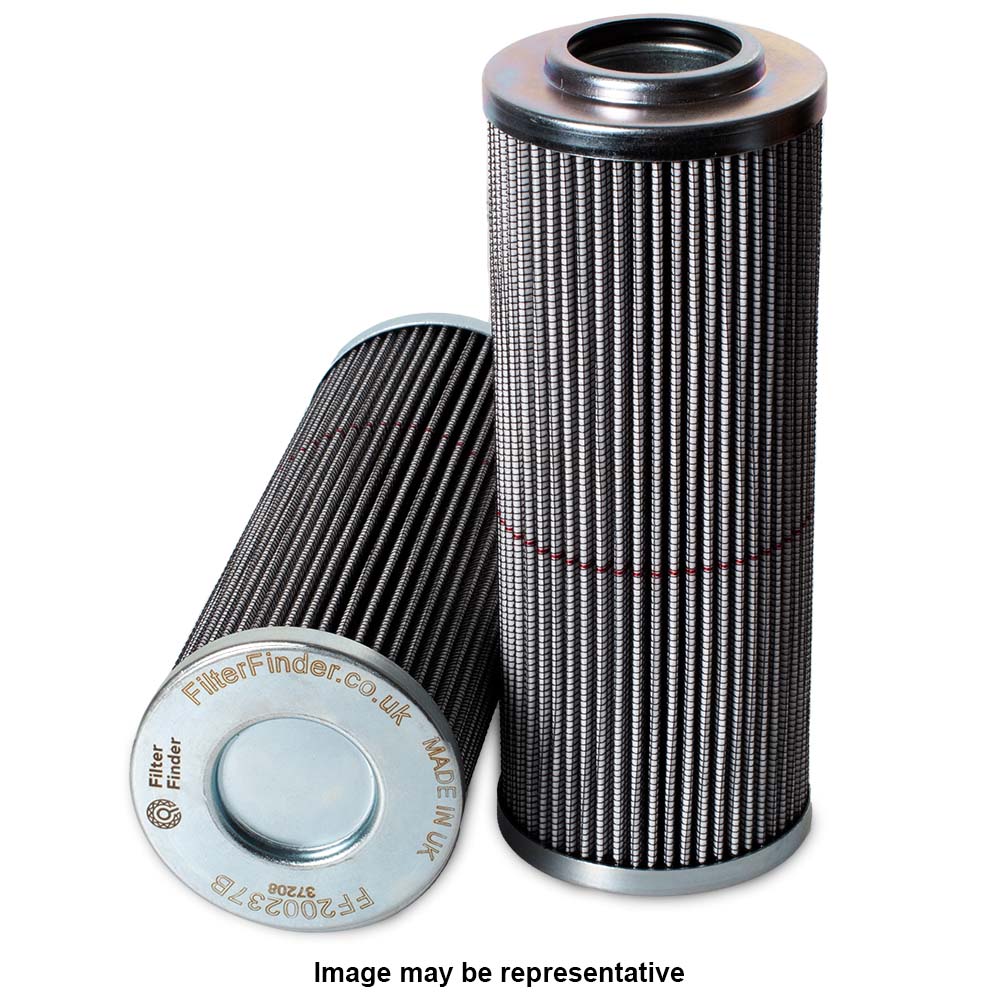

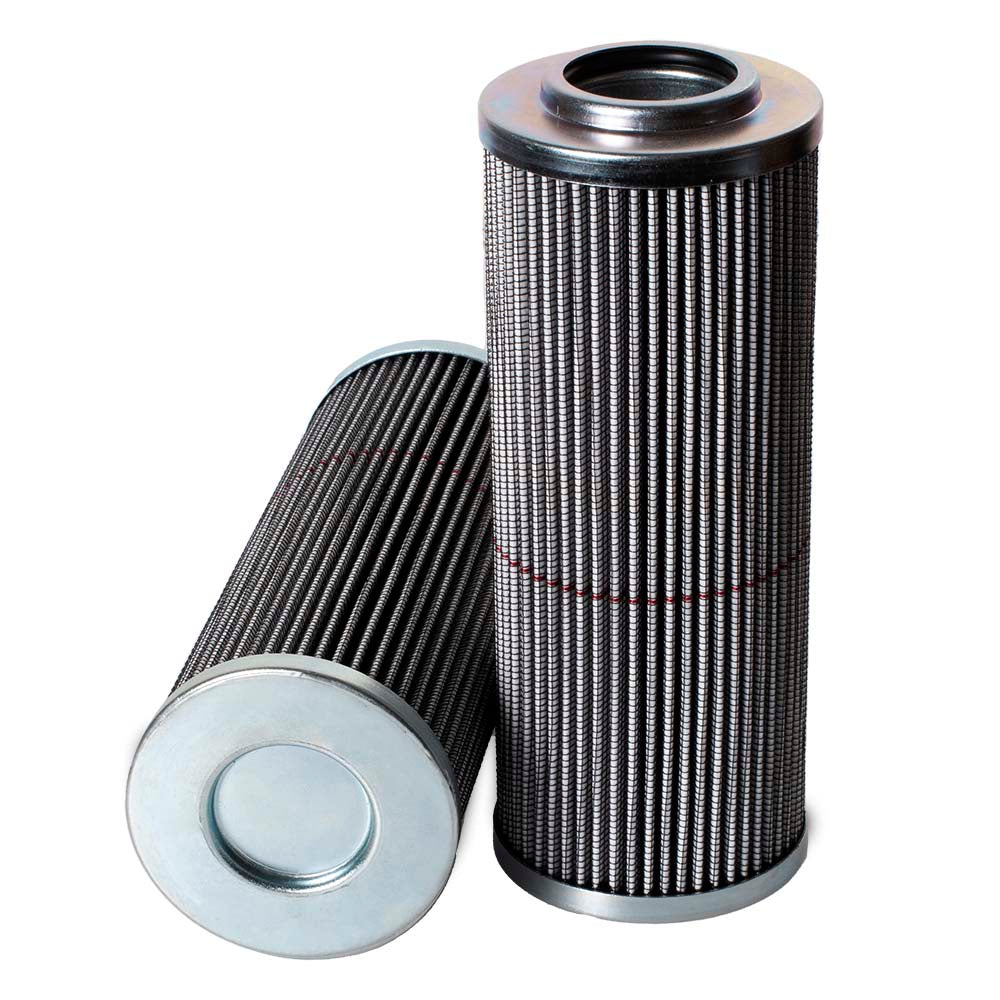

MicroFit® UltraGen III MFHLP30488 Pressure Filter | Replaces the Parker PR3144

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP30488 is the MICROFIT® approved replacement to the Parker PR3144. Engineered and manufactured in Great Britain the MFHLP30488 is designed to meet or exceed the quality and performance of OEM quality standards, ensuring superior filtration performance and the longest possible filter life.

Building on over 50 years of filtration expertise, the UltraGen III series is the third generation of MICROFIT® filter media, delivering exceptional efficiency and reliability.

FilterFinder is an approved distributor of MICROFIT® filters. With expert product knowledge, dedicated support, and a large stock availability, FilterFinder ensures you receive the parts you need when you need them, every time.

Price Match
$ 1,203.00
1.1 kg
0.0008 m³
United Kingdom
8421.99.90
0.4 kg
0.0013 m³
France
8421.99.90
0.5 kg
0.0008 m³
Italy
8421.99.90
United States
8421.99.90
0.44 kg
0.0012 m³
Germany
8421.23.00
Germany
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP30488 is the MICROFIT® approved replacement to the Parker PR3144. Engineered and manufactured in Great Britain the MFHLP30488 is designed to meet or exceed the quality and performance of OEM quality standards, ensuring superior filtration performance and the longest possible filter life.

Building on over 50 years of filtration expertise, the UltraGen III series is the third generation of MICROFIT® filter media, delivering exceptional efficiency and reliability.

FilterFinder is an approved distributor of MICROFIT® filters. With expert product knowledge, dedicated support, and a large stock availability, FilterFinder ensures you receive the parts you need when you need them, every time.

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 69.0 mm
Inner Diameter 34.2 mm
Length 173.0 mm
Δ Collapse Pressure 20 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Parker Brand Logo

Same Fit-Form & Function

As the Genuine Parker PR3144

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Pressure Filter
Outer Diameter 69.0 mm
Inner Diameter 34.2 mm
Length 173.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 20 BAR
Seal Nitrile
Temperature Range -30 - +100°C
