Summary

MicroFit MFHLP30610 Replaces the Mahle PI8430DRG60

PI8430DRG60
PI8430DRG60

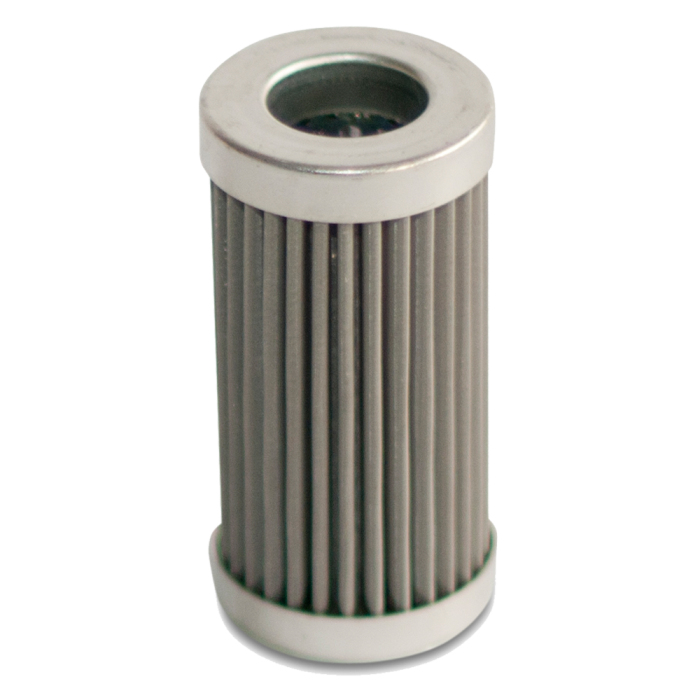

Representative product image Product image feedback

MicroFit MFHLP30610 | Replaces the Mahle PI8430DRG60

Brand: MicroFit
Description

Genuine MicroFit® UltraGen III MFHLP30610 filter. Engineered and manufactured in Great Britain the MFHLP30610 is designed to meet or exceed the quality and performance of OEM quality standards, ensuring superior filtration performance and the longest possible filter life.

Building on over 50 years of filtration expertise, the UltraGen III series is the third generation of MicroFit® filter media, delivering exceptional efficiency and reliability.

FilterFinder is an approved distributor of MicroFit® filters. With expert product knowledge, dedicated support, and a large stock availability, FilterFinder ensures you receive the parts you need when you need them, every time.

Price Match
$ 3,050.00
United Kingdom
8421.99.90
0.98 kg
0.0018 m³
Italy
8421.99.90
0.84 kg
0.0027 m³
France
8421.99.90
United States
8421.99.90
0.85 kg
0.0025 m³
Germany
8421.23.00
Shipping Terms

Description

Genuine MicroFit® UltraGen III MFHLP30610 filter. Engineered and manufactured in Great Britain the MFHLP30610 is designed to meet or exceed the quality and performance of OEM quality standards, ensuring superior filtration performance and the longest possible filter life.

Building on over 50 years of filtration expertise, the UltraGen III series is the third generation of MicroFit® filter media, delivering exceptional efficiency and reliability.

FilterFinder is an approved distributor of MicroFit® filters. With expert product knowledge, dedicated support, and a large stock availability, FilterFinder ensures you receive the parts you need when you need them, every time.

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 160µ
Outer Diameter 83.0 mm
Inner Diameter 47.4 mm
Length 255.0 mm
Δ Collapse Pressure 30 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Mahle Brand Logo

Same Fit-Form & Function

As the Genuine Mahle PI8430DRG60

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
60µ
Efficiency 2
Style Pressure Filter
Outer Diameter 83.0 mm
Inner Diameter 47.4 mm
Length 255.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 30 BAR
Seal Viton
Temperature Range -25 - +120°C
