MicroFit MFHSU70320 Replaces the Mahle P0319D40N2003FKM

P0319D40N2003FKM
P0319D40N2003FKM

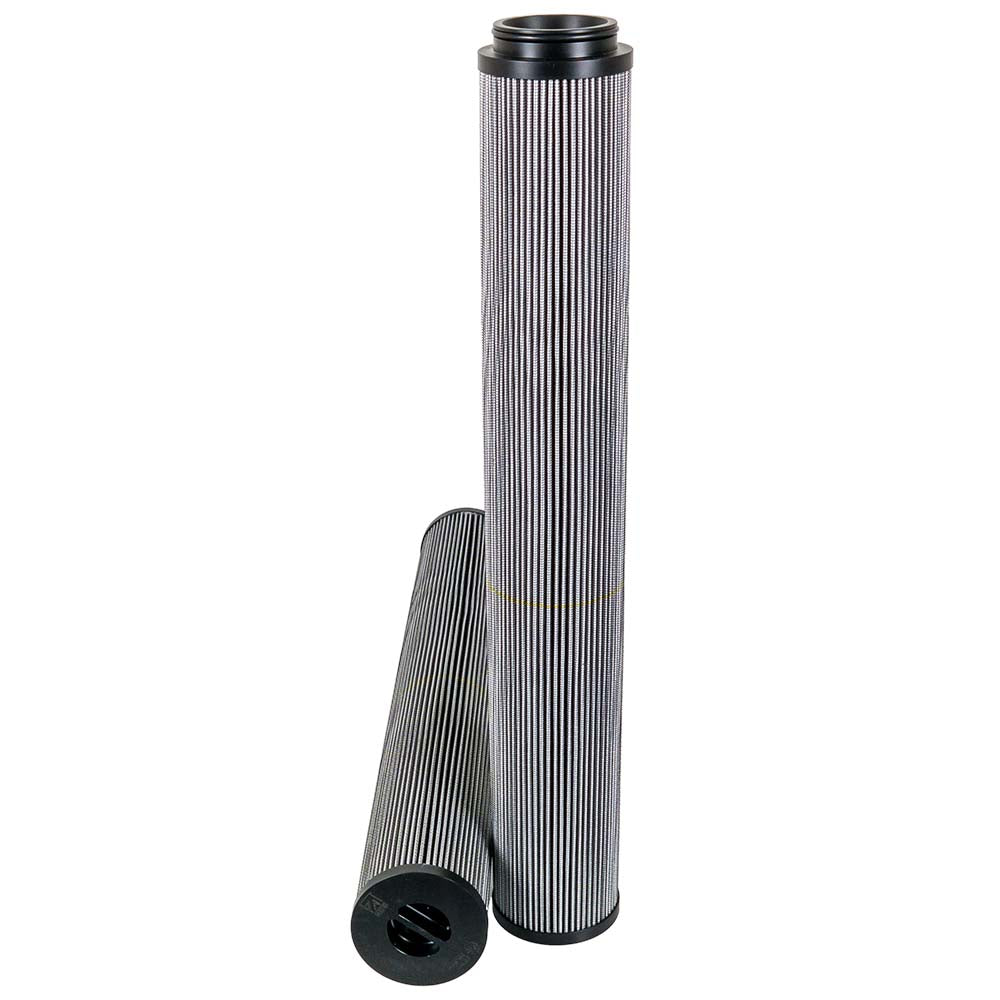

Representative product image Product image feedback

MicroFit® UltraGen III MFHSU70320 Suction Filter | Replaces the Mahle P0319D40N2003FKM

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHSU70320 is the MICROFIT® approved replacement to the Mahle P0319D40N2003FKM. Engineered and manufactured in Great Britain the MFHSU70320

Price Match
$ 6,429.00
3.86 kg
0.0065 m³
United Kingdom
8421.99.90
1.55 kg
0.008 m³
France
8421.99.90
1.76 kg
0.0065 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHSU70320 is the MICROFIT® approved replacement to the Mahle P0319D40N2003FKM. Engineered and manufactured in Great Britain the MFHSU70320

Specification

StyleSuction Filter
MediaGlass Fiber (Anti-Static)
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 79.0 mm
Inner Diameter 63.5 mm
Length 1040.5 mm
Seal MaterialNitrile
Temperature Range -30 - +100°C
Mahle Brand Logo

Same Fit-Form & Function

As the Genuine Mahle P0319D40N2003FKM

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Suction Filter
Outer Diameter 79.0 mm
Inner Diameter 63.5 mm
Length 1040.5 mm
Media Type Glass Fiber (Anti-Static)
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C
