MicroFit MFHC60029 Replaces the Hy-Pro HP944L266MB

HP944L266MB
HP944L266MB

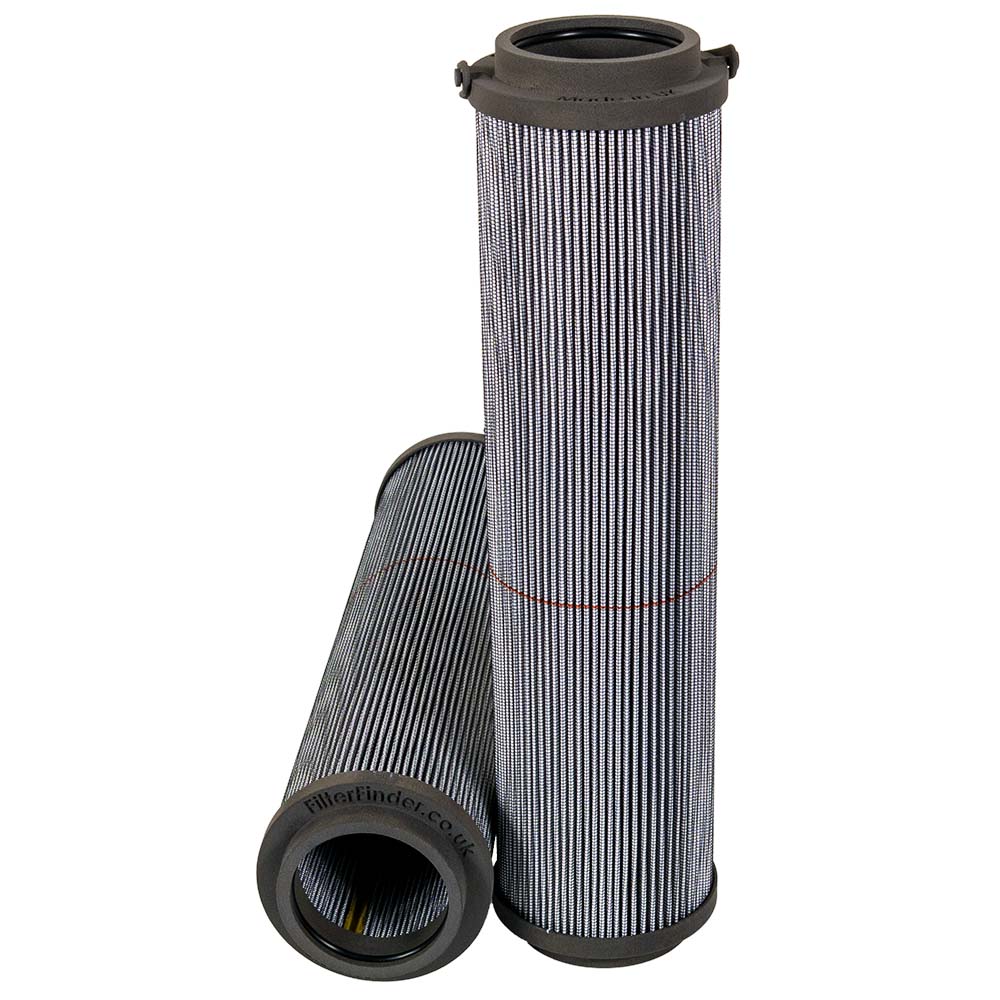

Representative product image Product image feedback

MicroFit® UltraGen III MFHC60029 Coreless Filter | Replaces the Hy-Pro HP944L266MB

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHC60029 is the MICROFIT® approved replacement to the Hy-Pro HP944L266MB. Engineered and manufactured in Great Britain the MFHC60029

Price Match
$ 5,395.00
2.38 kg
0.0061 m³
9 pcs
United Kingdom
8421.99.90
9 pcs
France
8421.99.90
1.09 kg
0.0061 m³
9 pcs
Italy
8421.99.90
1.08 kg
0.0094 m³
9 pcs
United States
8421.29.80.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHC60029 is the MICROFIT® approved replacement to the Hy-Pro HP944L266MB. Engineered and manufactured in Great Britain the MFHC60029

Specification

StyleCoreless Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 97.5 mm
Inner Diameter 64.5 mm
Length 637.0 mm
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Hy-Pro HP944L266MB

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Coreless Filter
Outer Diameter 97.5 mm
Inner Diameter 64.5 mm
Length 637.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
