Fleetguard HF7835 Replacement Spin-On Filter

Fleetguard HF7835
Fleetguard HF7835
Representative product image Product image feedback

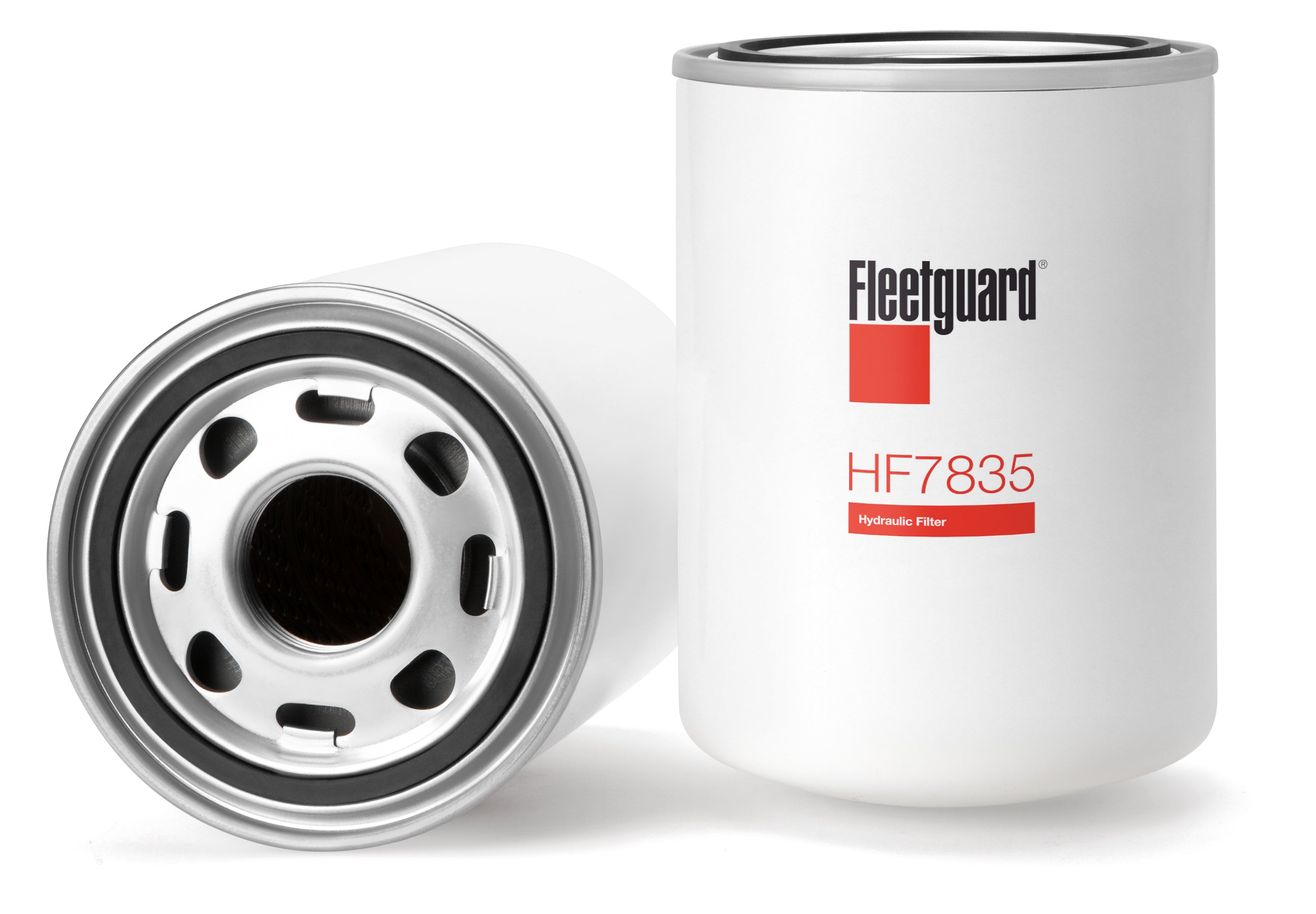

Fleetguard HF7835 Spin-On Filter

Brand: Fleetguard
Description

Fleetguard® HF7835 hydraulic spin-on filter with cellulose media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Price Match
$ 601.00
1.21 kg
0.0036 m³
270 pcs
United States
8421.99.90
1.13 kg
0.003 m³
270 pcs
Italy
8421.99.90
1.24 kg
0.004 m³
270 pcs
France
8421.99.90
1.26 kg
0.0047 m³
270 pcs
Italy
8421.29.80.90
270 pcs
United States
8421.23.00
Shipping Terms

Description

Fleetguard® HF7835 hydraulic spin-on filter with cellulose media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

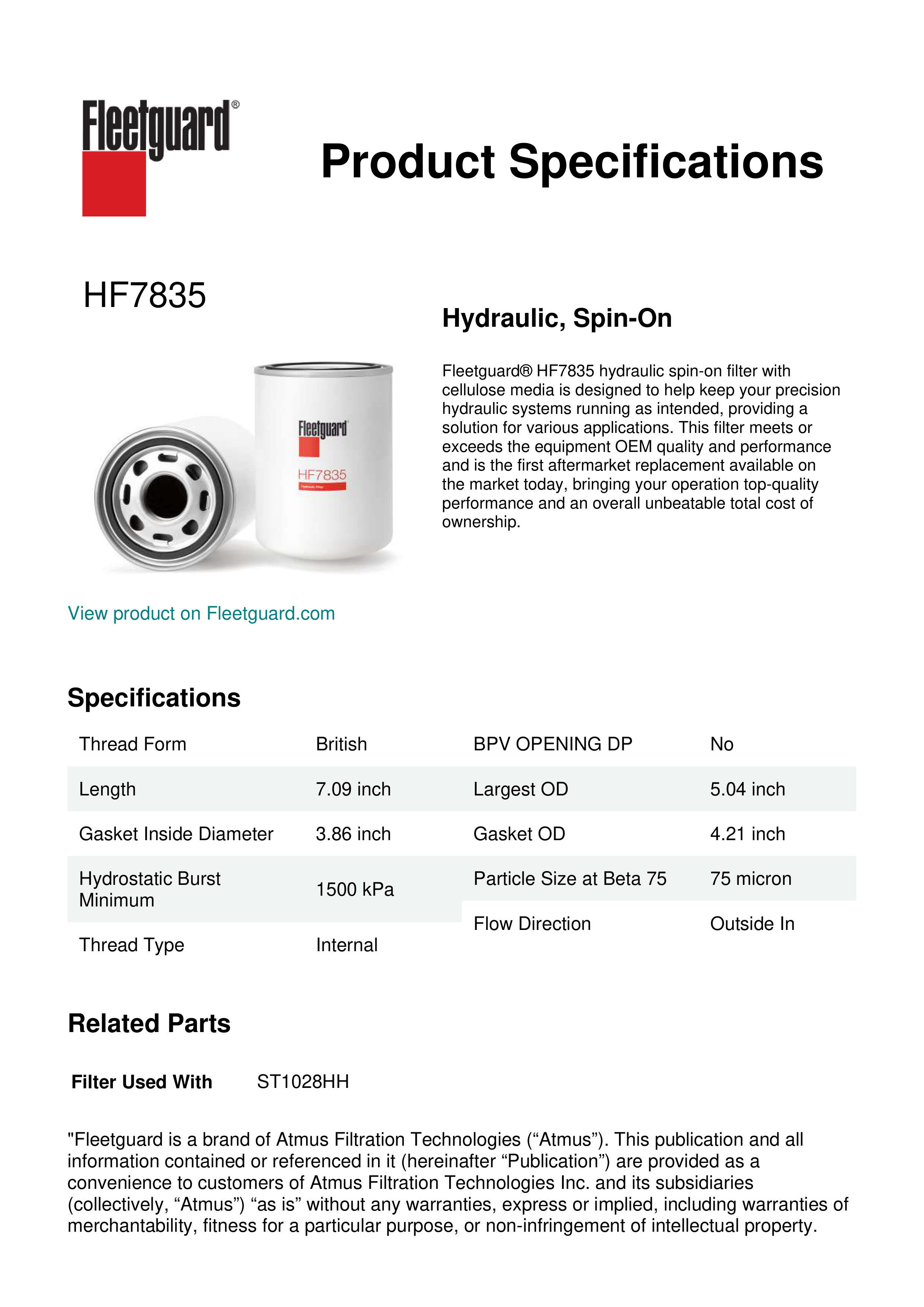

Specification

StyleSpin-On Filter
MediaCellulose
Efficiency 125µ @ β2
Outer Diameter 129.0 mm
Length 182.0 mm
Thread1 1/4" BSP
Δ Collapse Pressure 12 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Fleetguard Brand Logo

Fleetguard Product

Genuine Fleetguard HF7835

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ @ β2
Efficiency 2
Style Spin-On Filter
Outer Diameter 129.0 mm
Inner Diameter
Length 182.0 mm
Media Type Cellulose
Flow Direction
Thread 1 1/4" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 12 BAR
Seal Nitrile
Temperature Range -30 - +100°C
