Fleetguard HF35160 Replacement Suction Strainer

Fleetguard HF35160
Fleetguard HF35160
Representative product image Product image feedback

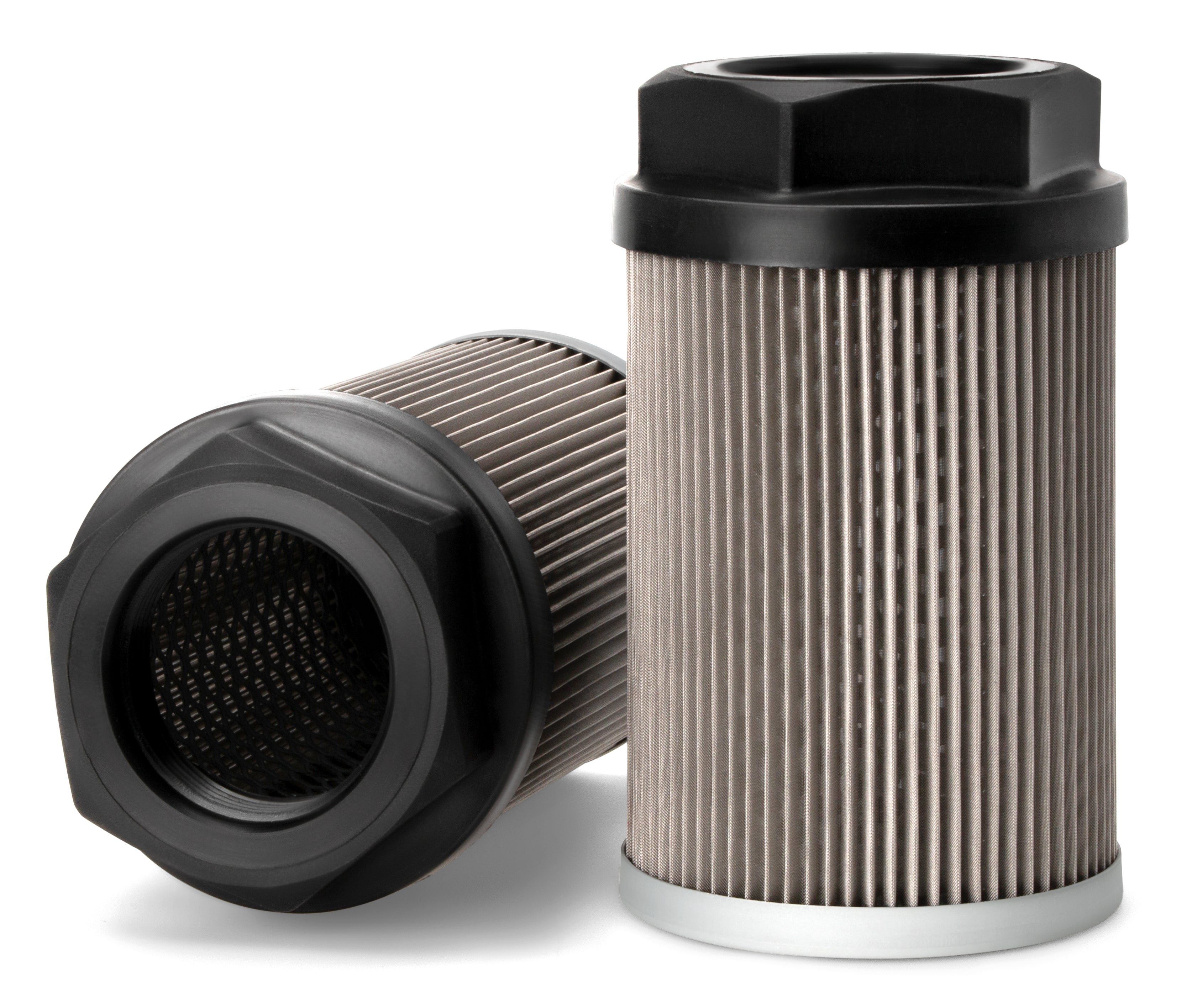

Fleetguard HF35160 Suction Strainer

Brand: Fleetguard
Description

Fleetguard® HF35160 hydraulic cartridge filter with wire mesh media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Price Match
$ 712.00
0.29 kg
0.0014 m³
288 pcs
United States
8421.99.90
0.35 kg
0.001 m³
288 pcs
Italy
8421.99.90
0.3 kg
0.0014 m³
288 pcs
France
8421.99.90
0.47 kg
0.0031 m³
288 pcs
United States
8421.29.80.90
288 pcs
8421.99.90
Shipping Terms

Description

Fleetguard® HF35160 hydraulic cartridge filter with wire mesh media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Specification

StyleSuction Strainer
MediaWire Mesh
Efficiency 1125µ
Outer Diameter 86.0 mm
Length 139.0 mm
Thread1 1/2" BSP
Δ Collapse Pressure 1 bar
Temperature Range -30 - +100°C
Fleetguard Brand Logo

Fleetguard Product

Genuine Fleetguard HF35160

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
125µ
Efficiency 2
Style Suction Strainer
Outer Diameter 86.0 mm
Inner Diameter
Length 139.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread 1 1/2" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 1 BAR
Seal
Temperature Range -30 - +100°C
