Fleetguard HF30714 Replacement Pressure Filter

Fleetguard HF30714
Fleetguard HF30714
Representative product image Product image feedback

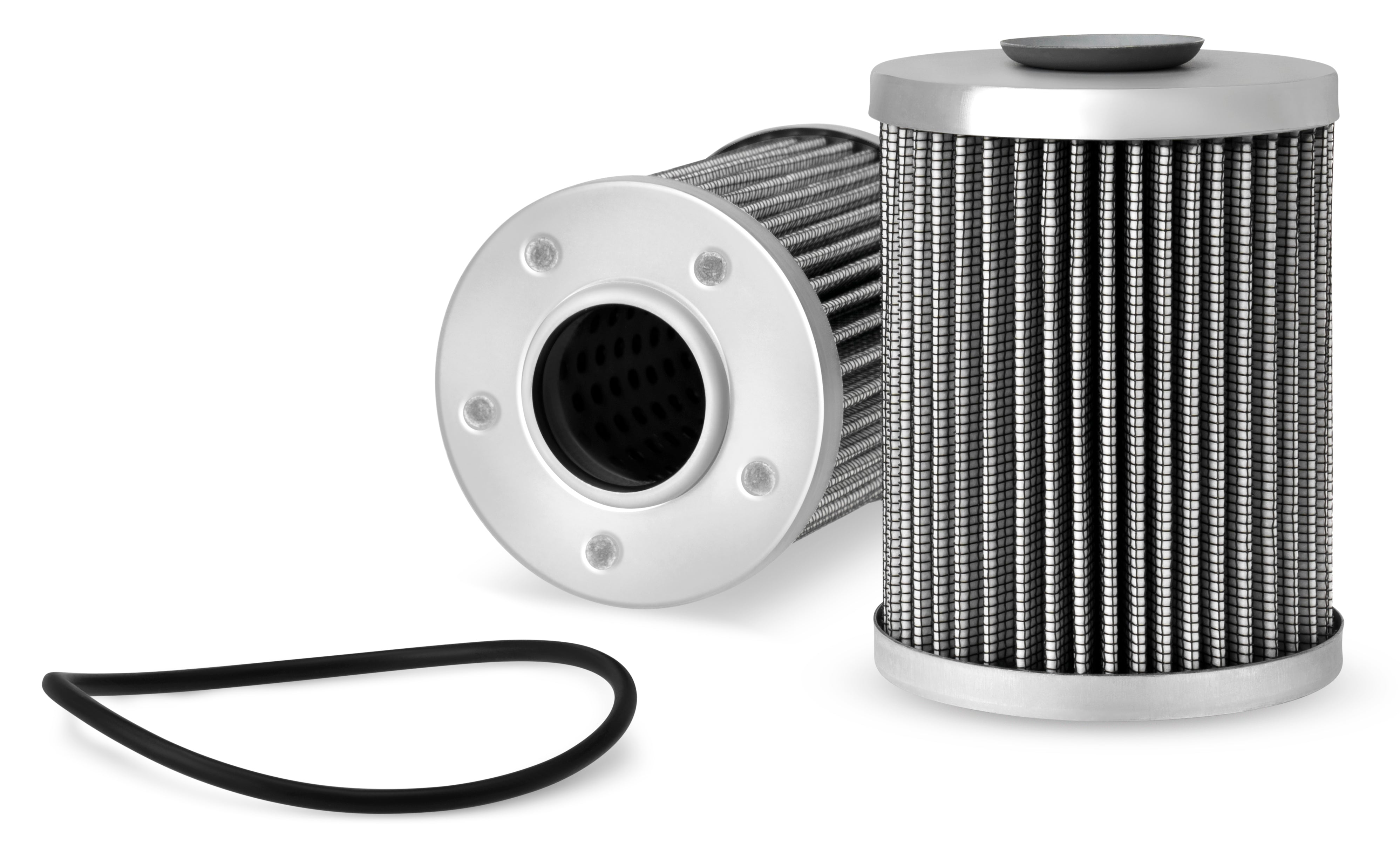

Fleetguard HF30714 Pressure Filter

Brand: Fleetguard
Description

Fleetguard® HF30714 hydraulic cartridge filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Price Match
$ 828.00
0.33 kg
0.0008 m³
700 pcs
United States
8421.99.90
0.34 kg
0.0008 m³
700 pcs
France
8421.99.90
0.73 kg
0.0005 m³
700 pcs
United Kingdom
8421.99.90
0.15 kg
0.0005 m³
700 pcs
Italy
8421.99.90
0.38 kg
0.0011 m³
700 pcs
Italy
8421.29.80.90
Shipping Terms

Description

Fleetguard® HF30714 hydraulic cartridge filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 73.6 mm
Inner Diameter 32.0 mm
Length 99.0 mm
Δ Collapse Pressure 25 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Fleetguard Brand Logo

Fleetguard Product

Genuine Fleetguard HF30714

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Pressure Filter
Outer Diameter 73.6 mm
Inner Diameter 32.0 mm
Length 99.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 25 BAR
Seal Nitrile
Temperature Range -30 - +100°C
