MicroFit MFHR51487 Replaces the Pall HC8300EOT16H

MICROFIT MFHR51487
MICROFIT MFHR51487
Representative product image Product image feedback

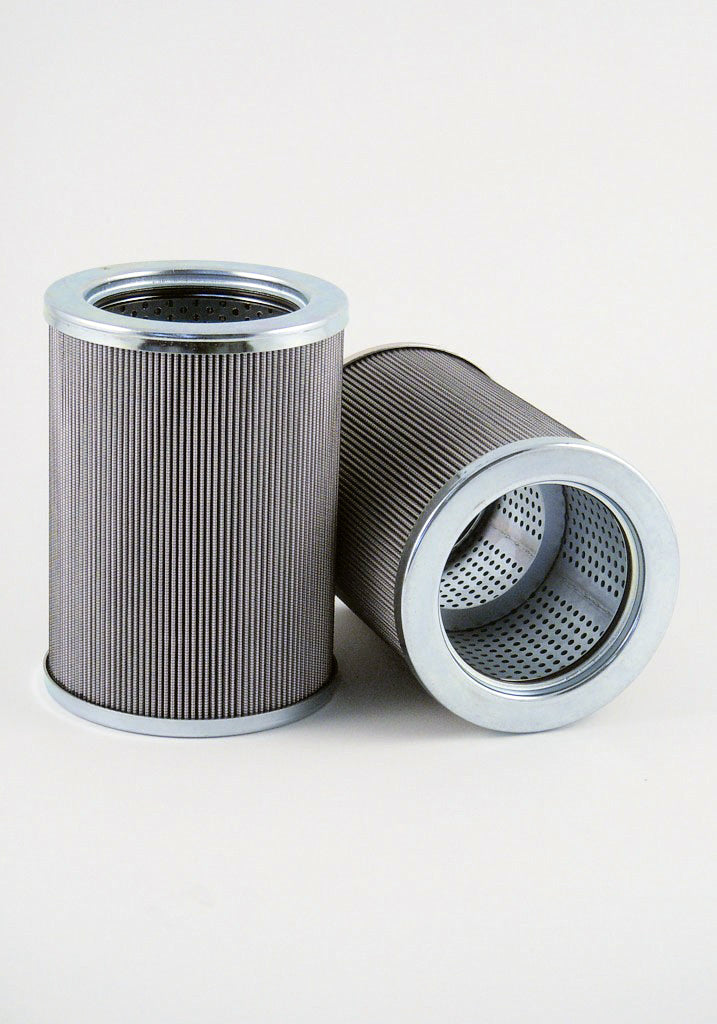

MicroFit® UltraGen III MFHR51487 Return Filter | Replaces the Pall HC8300EOT16H

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR51487 is the MICROFIT® approved replacement to the Pall HC8300EOT16H. Engineered and manufactured in Great Britain the MFHR51487

Price Match
$ 7,180.00
8.41 kg
0.0099 m³
United Kingdom
8421.99.90
3.82 kg
0.0099 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR51487 is the MICROFIT® approved replacement to the Pall HC8300EOT16H. Engineered and manufactured in Great Britain the MFHR51487

Specification

StyleReturn Filter
MediaWire Mesh
Efficiency 1150µ
Outer Diameter 152.0 mm
Inner Diameter 105.5 mm
Length 427.0 mm
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Pall Brand Logo

Same Fit-Form & Function

As the Genuine Pall HC8300EOT16H

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
150µ
Efficiency 2
Style Return Filter
Outer Diameter 152.0 mm
Inner Diameter 105.5 mm
Length 427.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
