Summary

MicroFit MFHR52000 Replaces the Fai Filtri CF6201A06NA

CF6201A06NA
CF6201A06NA
Representative product image Product image feedback

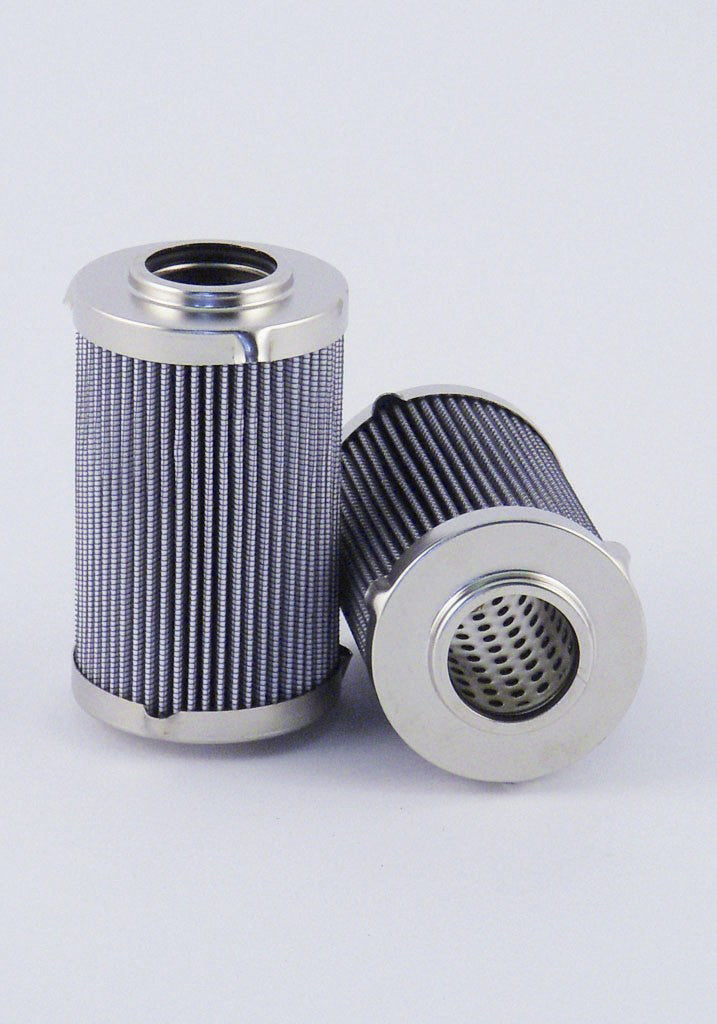

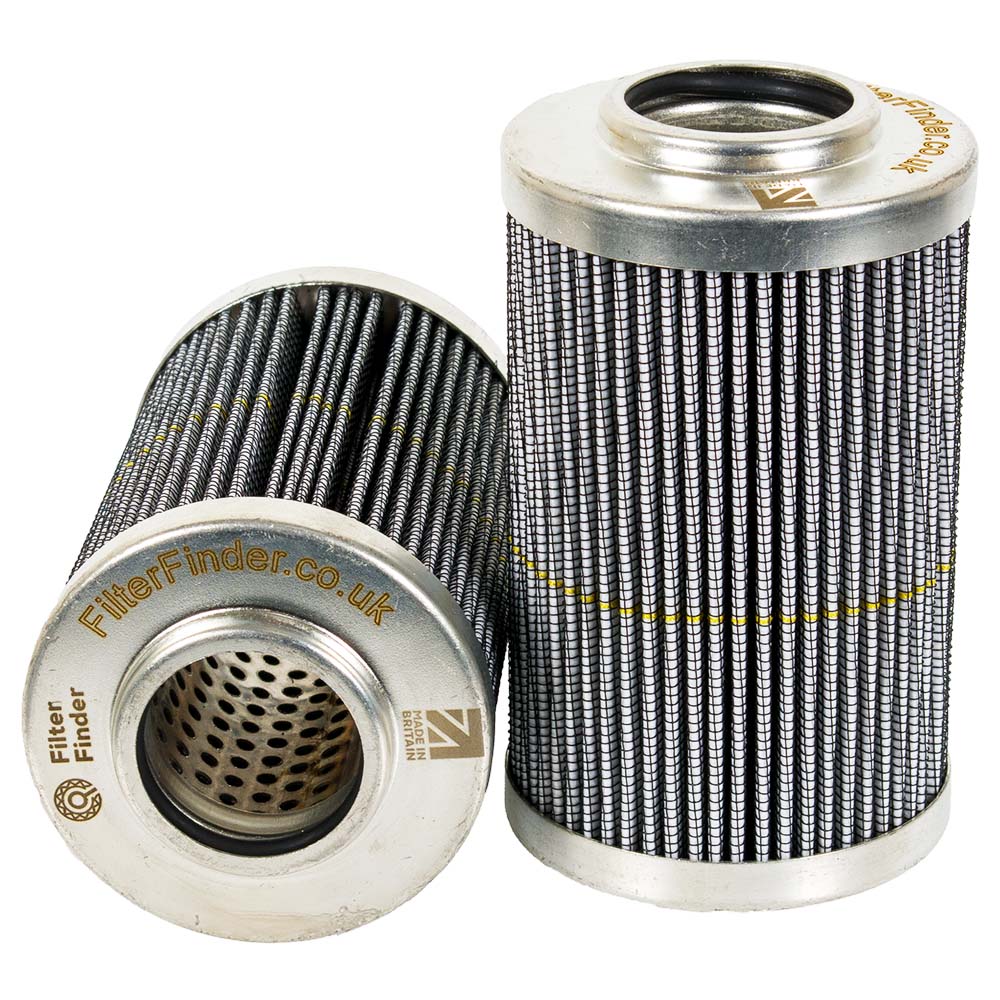

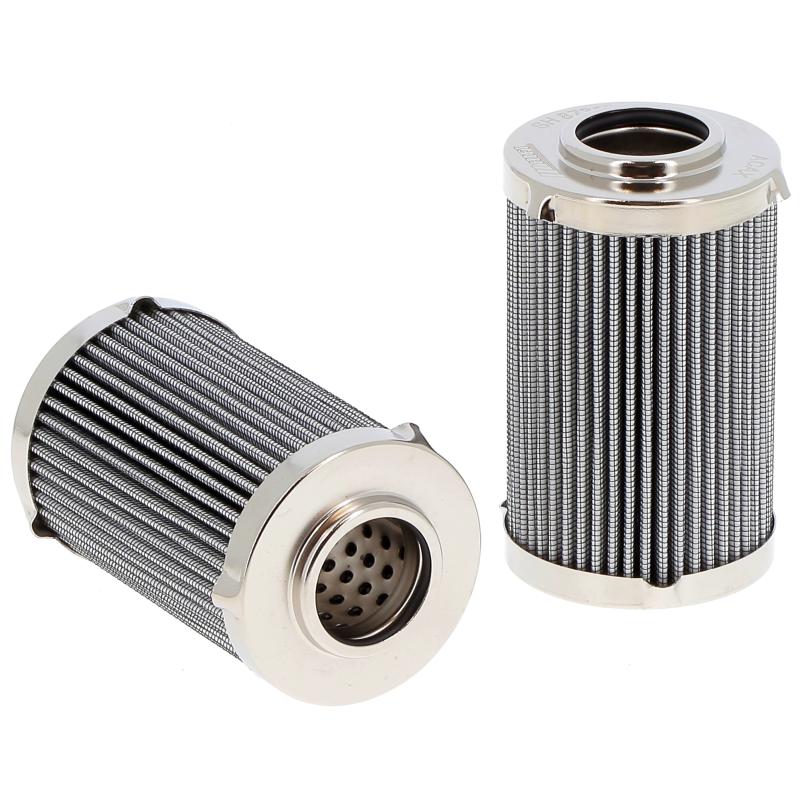

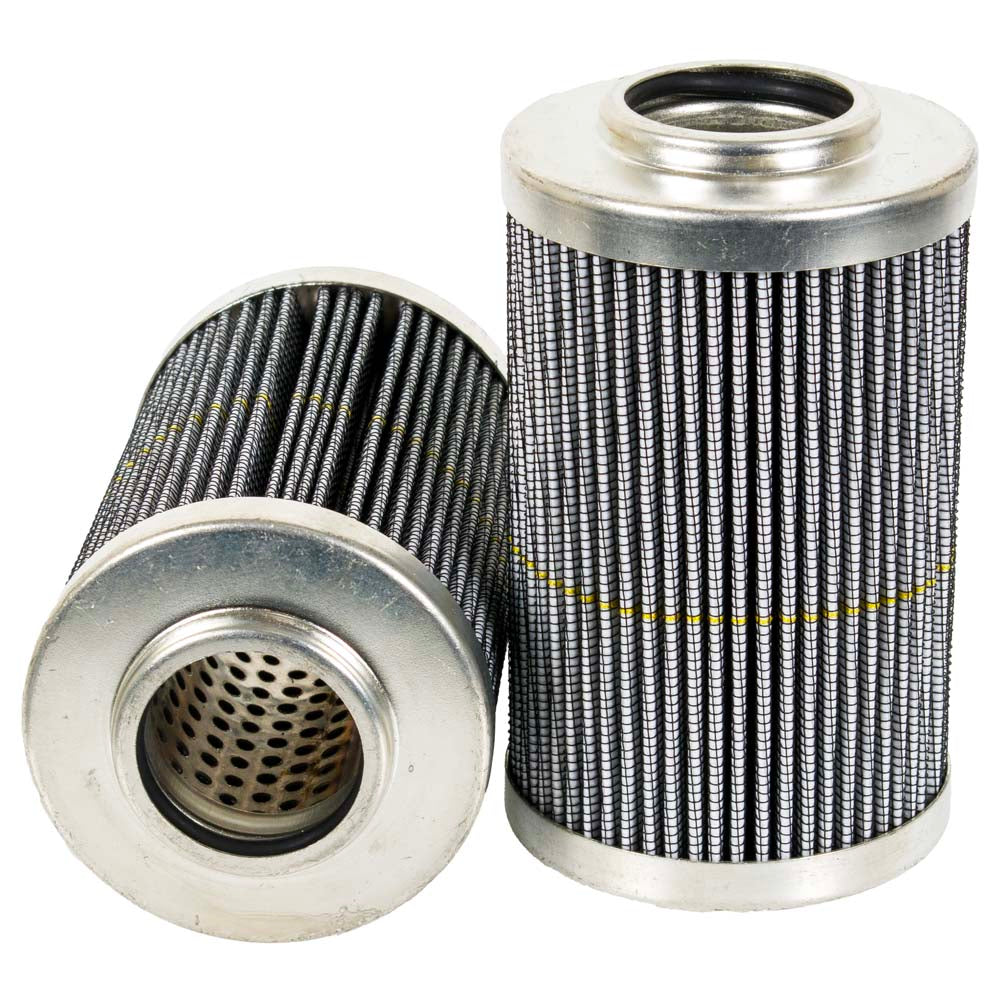

MicroFit® UltraGen III MFHR52000 Return Filter | Replaces the Fai Filtri CF6201A06NA

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR52000 is the MICROFIT® approved replacement to the Fai Filtri CF6201A06NA. Engineered and manufactured in Great Britain the MFHR52000

Price Match
$ 1,593.00
0.77 kg
0.0006 m³
United Kingdom
8421.99.90
0.16 kg
0.0006 m³
Italy
8421.99.90
0.36 kg
0.0009 m³
France
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR52000 is the MICROFIT® approved replacement to the Fai Filtri CF6201A06NA. Engineered and manufactured in Great Britain the MFHR52000

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 70.0 mm
Inner Diameter 33.5 mm
Length 122.0 mm
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Fai Filtri CF6201A06NA

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Return Filter
Outer Diameter 70.0 mm
Inner Diameter 33.5 mm
Length 122.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
