MicroFit MFHLP33126 Replaces the Parker 938349Q

MICROFIT MFHLP33126
MICROFIT MFHLP33126
Representative product image Product image feedback

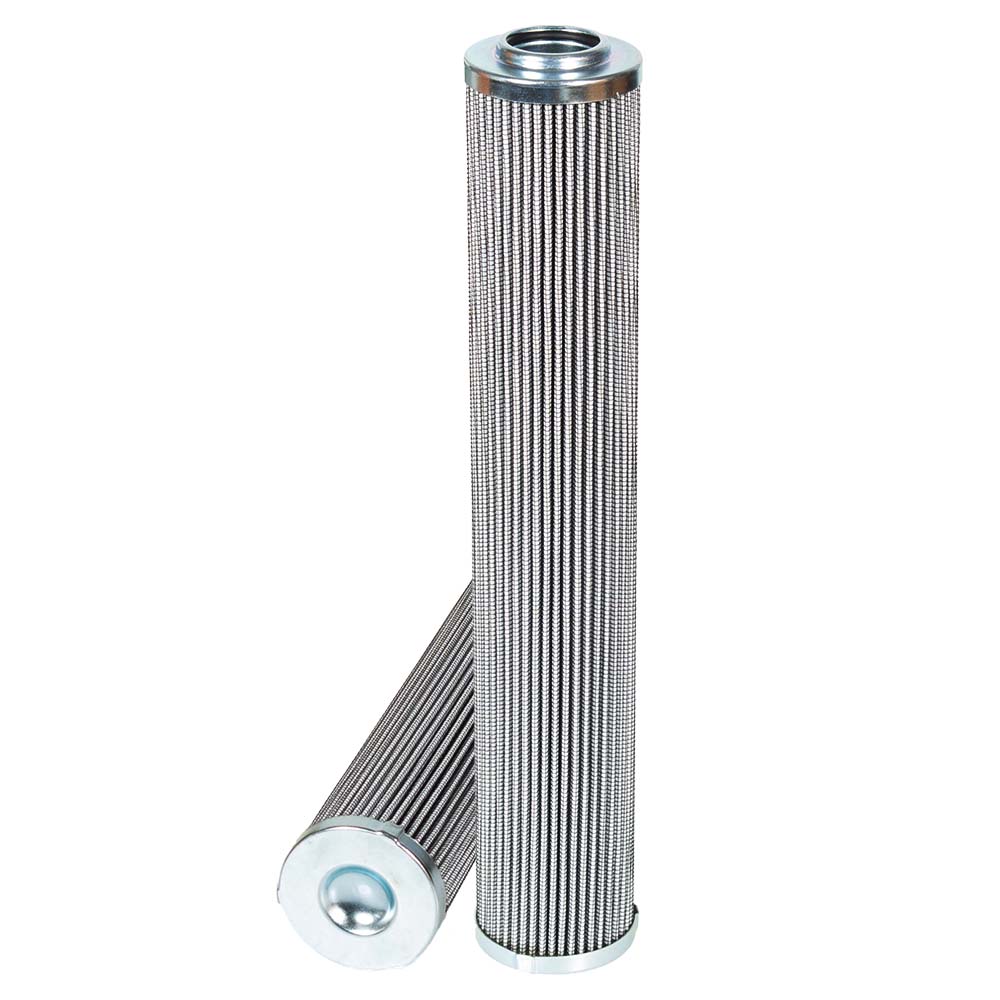

MicroFit® UltraGen III MFHLP33126 Pressure Filter | Replaces the Parker 938349Q

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP33126 is the MICROFIT® approved replacement to the Parker 938349Q. Engineered and manufactured in Great Britain the MFHLP33126

Price Match
$ 1,890.00
1.29 kg
0.0009 m³
United Kingdom
8421.99.90
0.59 kg
0.0009 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP33126 is the MICROFIT® approved replacement to the Parker 938349Q. Engineered and manufactured in Great Britain the MFHLP33126

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000

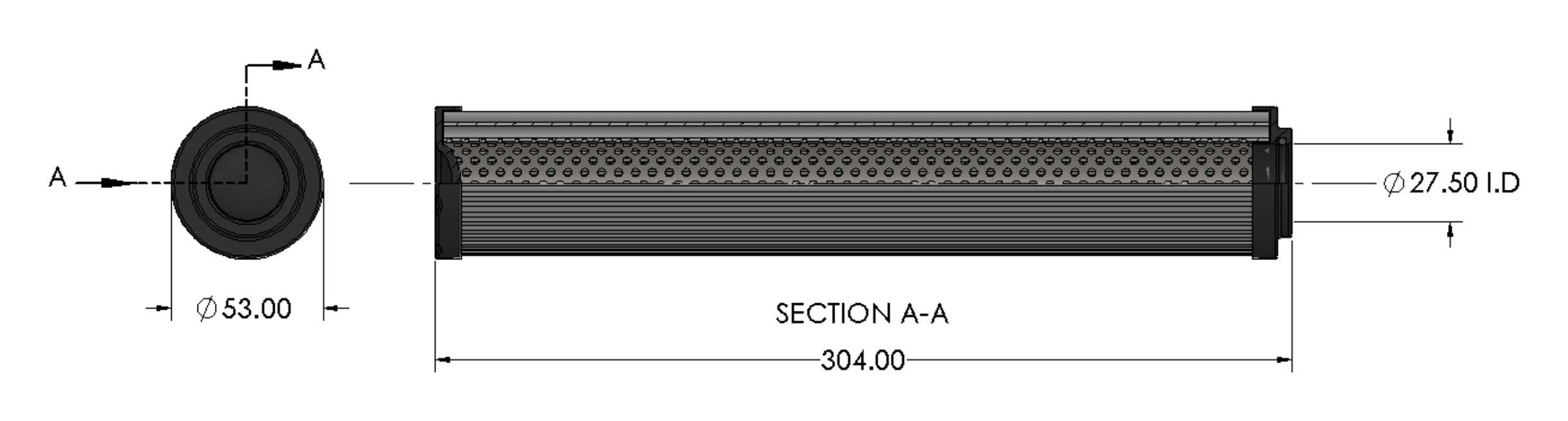

Outer Diameter 53.0 mm
Inner Diameter 27.5 mm
Length 304.0 mm
Δ Collapse Pressure 21 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Parker Brand Logo

Same Fit-Form & Function

As the Genuine Parker 938349Q

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Pressure Filter
Outer Diameter 53.0 mm
Inner Diameter 27.5 mm
Length 304.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 21 BAR
Seal Viton
Temperature Range -25 - +120°C
