MicroFit MFHHP40498 Replaces the Parker 927173Q

MICROFIT MFHHP40498
MICROFIT MFHHP40498
Representative product image Product image feedback

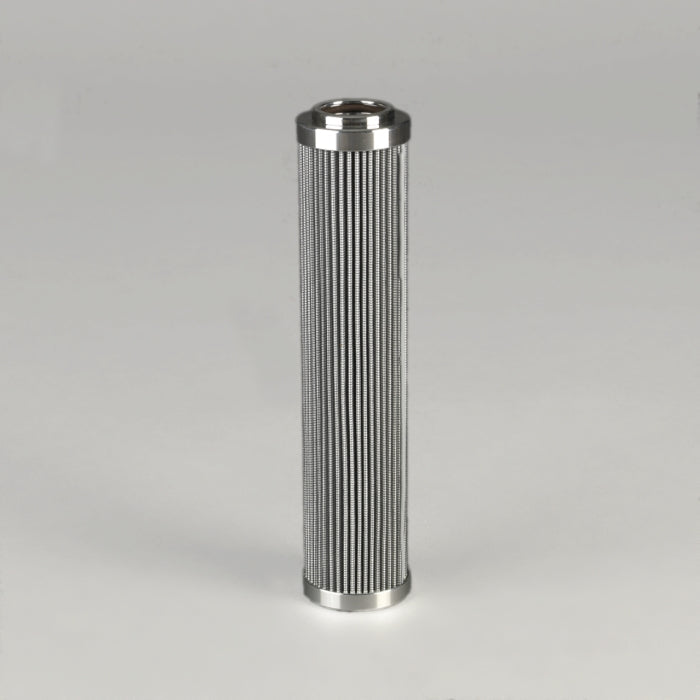

MicroFit® UltraGen III MFHHP40498 Pressure Filter | Replaces the Parker 927173Q

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHHP40498 is the MICROFIT® approved replacement to the Parker 927173Q. Engineered and manufactured in Great Britain the MFHHP40498

Price Match
$ 2,725.00
1.51 kg
0.0007 m³
360 pcs
United Kingdom
8421.99.90
0.69 kg
0.0007 m³
360 pcs
Italy
8421.99.90
0.85 kg
0.0013 m³
6 pcs
360 pcs
United States
8421.29.80.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP40498 is the MICROFIT® approved replacement to the Parker 927173Q. Engineered and manufactured in Great Britain the MFHHP40498

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 78.0 mm
Inner Diameter 43.0 mm
Length 118.0 mm
Δ Collapse Pressure 210 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Parker Brand Logo

Same Fit-Form & Function

As the Genuine Parker 927173Q

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Pressure Filter
Outer Diameter 78.0 mm
Inner Diameter 43.0 mm
Length 118.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 210 BAR
Seal Viton
Temperature Range -25 - +120°C
