Summary

MicroFit MFHLP30687 Replaces the MP Filtri 8HP3201A03ANP01

MICROFIT MFHLP30687
MICROFIT MFHLP30687
Representative product image Product image feedback

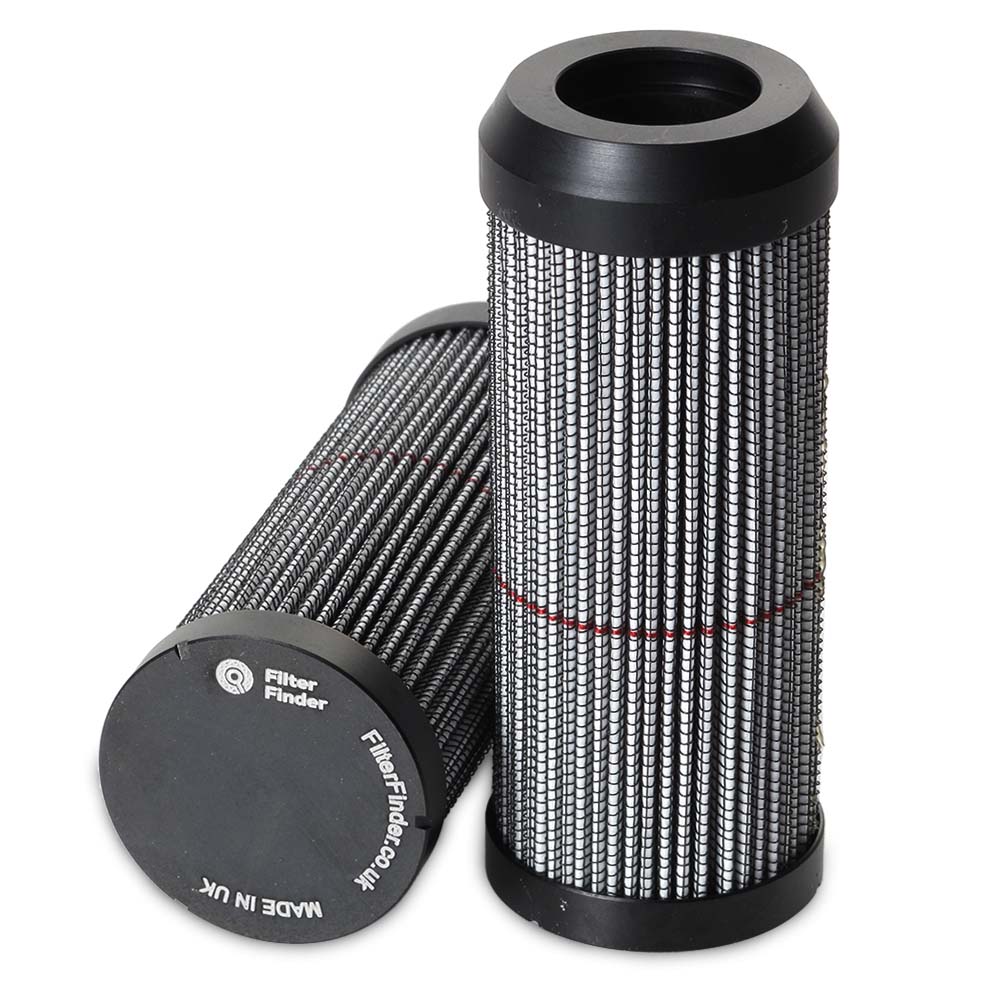

MicroFit® UltraGen III MFHLP30687 Pressure Filter | Replaces the MP Filtri 8HP3201A03ANP01

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP30687 is the MICROFIT® approved replacement to the MP Filtri 8HP3201A03ANP01. Engineered and manufactured in Great Britain the MFHLP30687

Price Match
$ 1,557.00
1.06 kg
0.0007 m³
United Kingdom
8421.99.90
0.49 kg
0.0007 m³
Italy
8421.99.90
0.4 kg
0.001 m³
France
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP30687 is the MICROFIT® approved replacement to the MP Filtri 8HP3201A03ANP01. Engineered and manufactured in Great Britain the MFHLP30687

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 78.0 mm
Inner Diameter 40.5 mm
Length 116.0 mm
Δ Collapse Pressure 21 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
MP Filtri Brand Logo

Same Fit-Form & Function

As the Genuine MP Filtri 8HP3201A03ANP01

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Pressure Filter
Outer Diameter 78.0 mm
Inner Diameter 40.5 mm
Length 116.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 21 BAR
Seal Nitrile
Temperature Range -30 - +100°C
