Summary

MicroFit MFHLP31829 Replaces the Internormen 318512

MICROFIT MFHLP31829
MICROFIT MFHLP31829
Representative product image Product image feedback

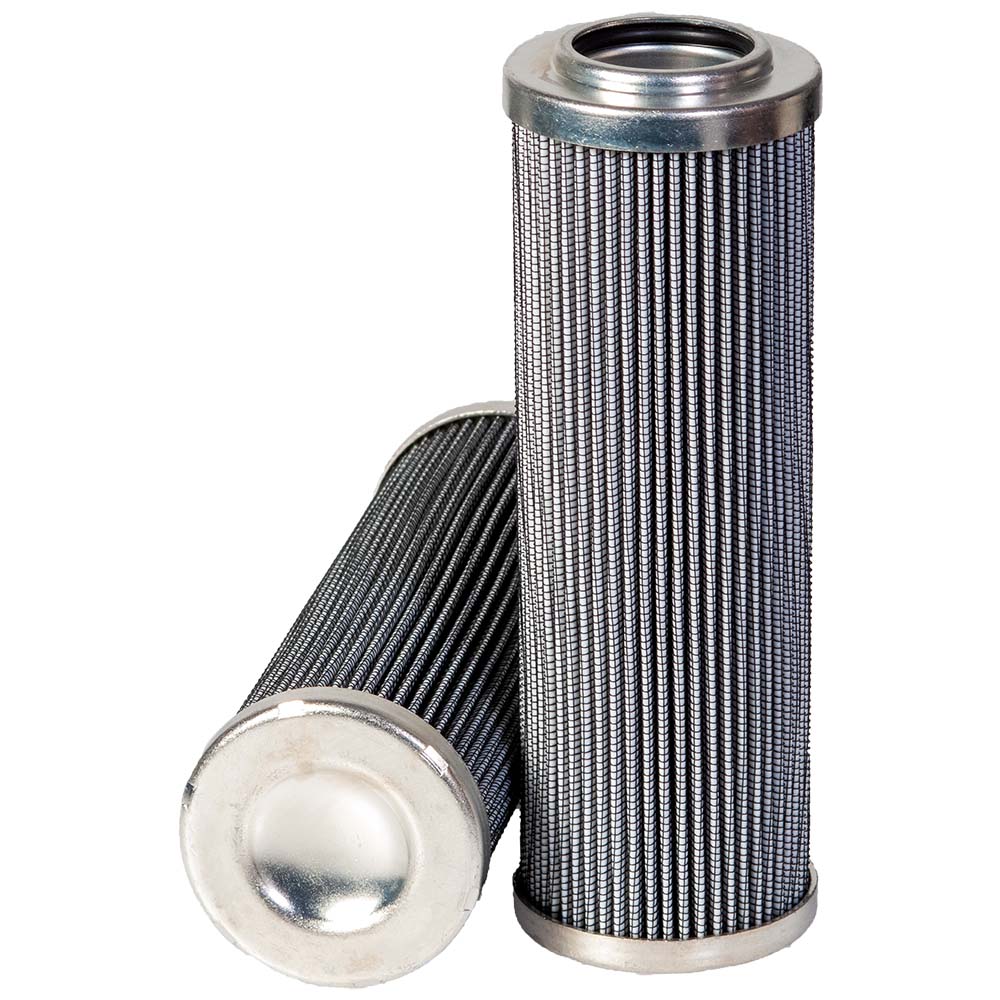

MicroFit® UltraGen III MFHLP31829 Pressure Filter | Replaces the Internormen 318512

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP31829 is the MICROFIT® approved replacement to the Internormen 318512. Engineered and manufactured in Great Britain the MFHLP31829

Price Match
$ 1,329.00
0.99 kg
0.0006 m³
United Kingdom
8421.99.90
0.45 kg
0.0006 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31829 is the MICROFIT® approved replacement to the Internormen 318512. Engineered and manufactured in Great Britain the MFHLP31829

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 179.0 mm
Δ Collapse Pressure 30 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Internormen Brand Logo

Same Fit-Form & Function

As the Genuine Internormen 318512

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Pressure Filter
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 179.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 30 BAR
Seal Viton
Temperature Range -25 - +120°C
