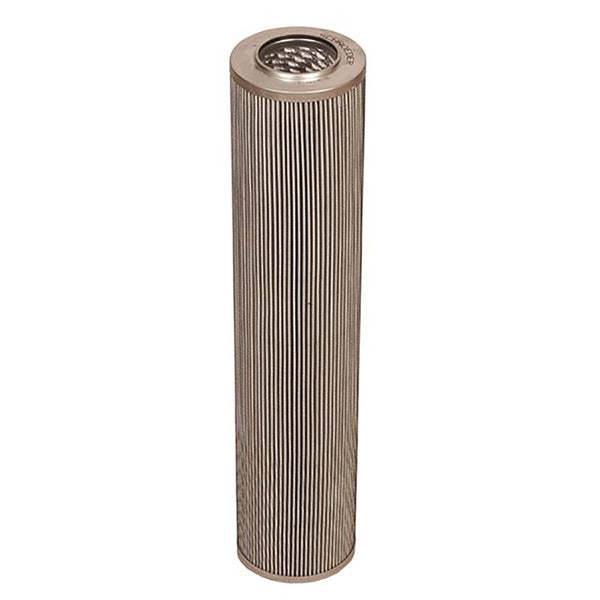

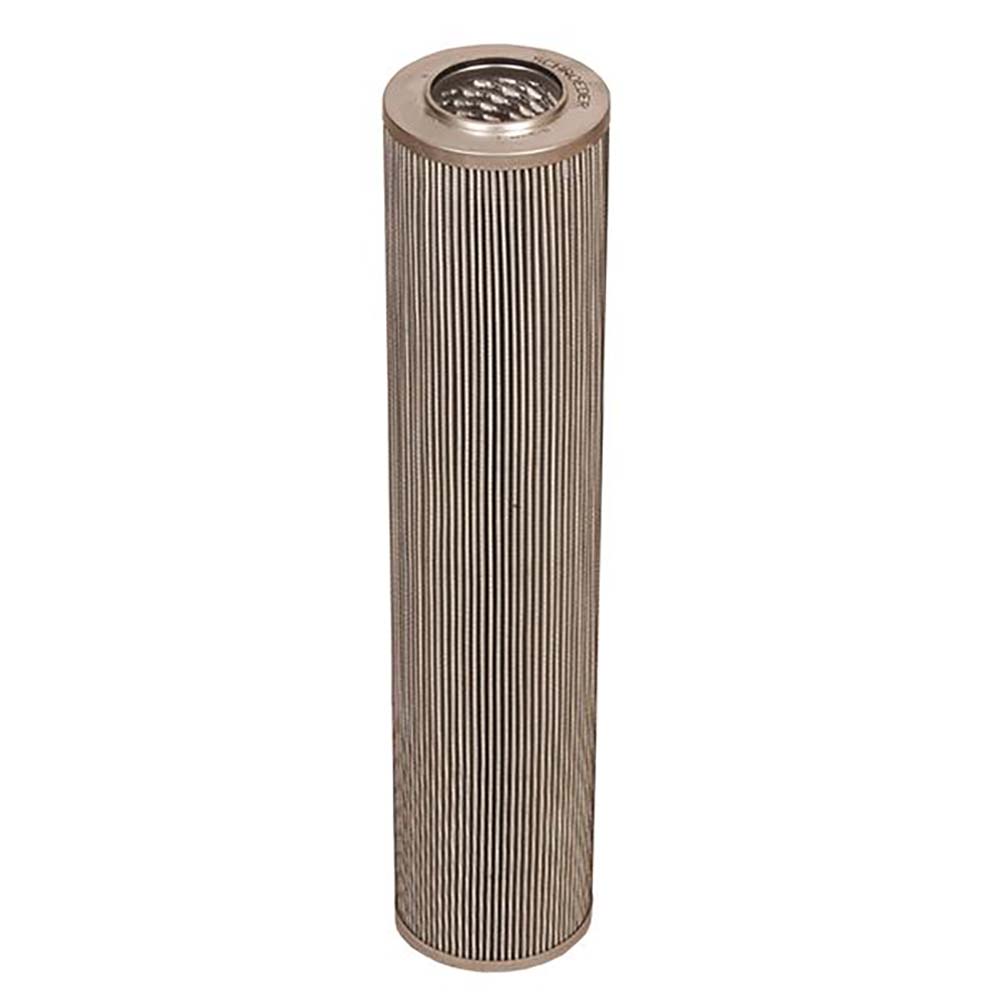

Schroeder 18LZ25 Replacement Special Filter

Schroeder 18LZ25
Schroeder 18LZ25
Representative product image Product image feedback

Schroeder 18LZ25 Special Filter

Brand: Schroeder
Description

Original Schroeder 18LZ25 Replacement Hydraulic Filter

Price Match
$ 4,512.00
United States
8421.99.90
1.8 kg
0.0046 m³
Italy
8421.99.90
Shipping Terms

Description

Original Schroeder 18LZ25 Replacement Hydraulic Filter

Specification

StyleSpecial Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 99.0 mm
Inner Diameter 57.5 mm
Length 470.0 mm
Δ Collapse Pressure 25 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Schroeder Brand Logo

Schroeder Product

Genuine Schroeder 18LZ25

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Special Filter
Outer Diameter 99.0 mm
Inner Diameter 57.5 mm
Length 470.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 25 BAR
Seal Nitrile
Temperature Range -30 - +100°C
