MicroFit MFHLP31074 Replaces the Fairey Arlon 170L205A

170L205A
170L205A
Verified product image Product image feedback

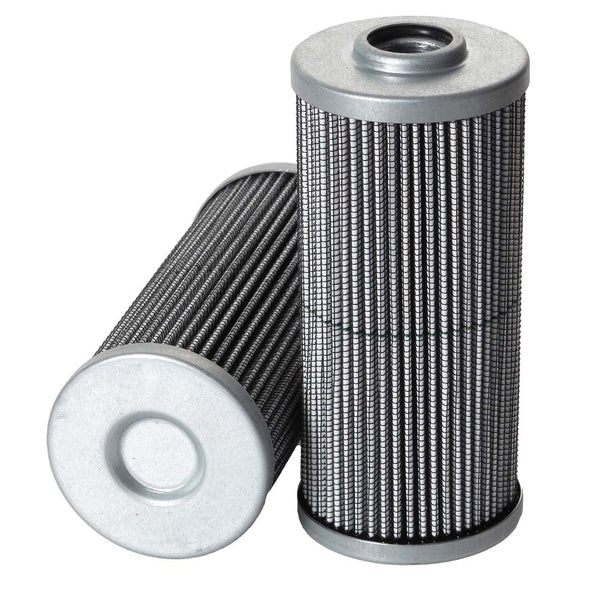

MicroFit® UltraGen III MFHLP31074 Pressure Filter | Replaces the Fairey Arlon 170L205A

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP31074 is the MICROFIT® approved replacement to the Fairey Arlon 170L205A. Engineered and manufactured in Great Britain the MFHLP31074 is designed to meet or exceed the quality and performance of OEM quality standards, ensuring superior filtration performance and the longest possible filter life.

Building on over 50 years of filtration expertise, the UltraGen III series is the third generation of MICROFIT® filter media, delivering exceptional efficiency and reliability.

FilterFinder is an approved distributor of MICROFIT® filters. With expert product knowledge, dedicated support, and a large stock availability, FilterFinder ensures you receive the parts you need when you need them, every time.

Price Match
$ 746.00
0.49 kg
0.0004 m³
144 pcs
United Kingdom
8421.99.90
0.22 kg
0.0004 m³
144 pcs
Italy
8421.99.90
0.2 kg
0.0005 m³
144 pcs
France
8421.99.90
0.2 kg
0.001 m³
144 pcs
United States
8421.29.80.90
0.4 kg
0.0021 m³
144 pcs
Mexico
8421.23.00
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31074 is the MICROFIT® approved replacement to the Fairey Arlon 170L205A. Engineered and manufactured in Great Britain the MFHLP31074 is designed to meet or exceed the quality and performance of OEM quality standards, ensuring superior filtration performance and the longest possible filter life.

Building on over 50 years of filtration expertise, the UltraGen III series is the third generation of MICROFIT® filter media, delivering exceptional efficiency and reliability.

FilterFinder is an approved distributor of MICROFIT® filters. With expert product knowledge, dedicated support, and a large stock availability, FilterFinder ensures you receive the parts you need when you need them, every time.

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 55.3 mm
Inner Diameter 19.0 mm
Length 122.5 mm
Δ Collapse Pressure 25 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Fairey Arlon 170L205A

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 55.3 mm
Inner Diameter 19.0 mm
Length 122.5 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 25 BAR
Seal Nitrile
Temperature Range -30 - +100°C
