MicroFit MFHLP32119 Replaces the Hydac 0330 D 010 ONPSSFREE

0330 D 010 ONPSSFREE
0330 D 010 ONPSSFREE

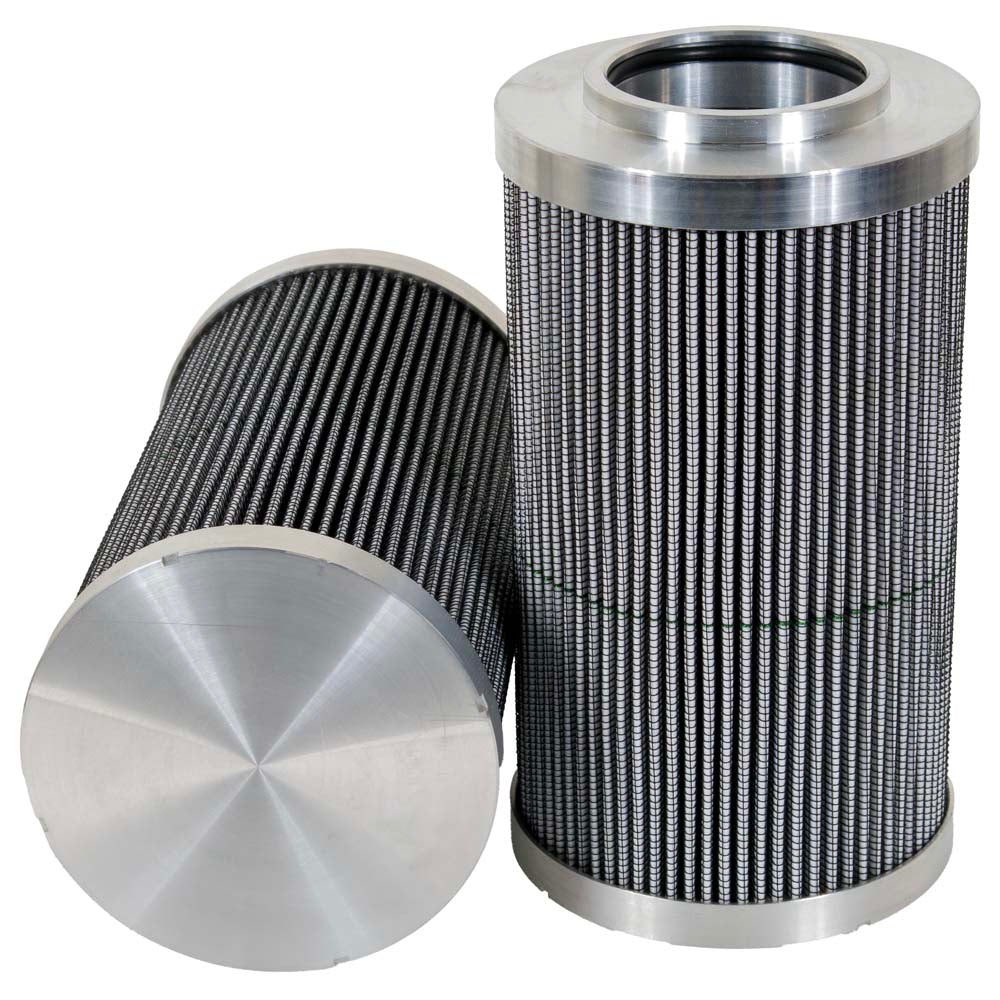

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP32119 Pressure Filter | Replaces the Hydac 0330 D 010 ONPSSFREE

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP32119 is the MICROFIT® approved replacement to the Hydac 0330 D 010 ONPSSFREE. Engineered and manufactured in Great Britain the MFHLP32119

Price Match
$ 2,736.00
2.0 kg
0.0013 m³
United Kingdom
8421.99.90
0.91 kg
0.0013 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP32119 is the MICROFIT® approved replacement to the Hydac 0330 D 010 ONPSSFREE. Engineered and manufactured in Great Britain the MFHLP32119

Specification

StylePressure Filter
MediaGlass Fiber (Anti-Static)
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 90.5 mm
Inner Diameter 48.2 mm
Length 162.0 mm
Δ Collapse Pressure 20 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Hydac Brand Logo

Same Fit-Form & Function

As the Genuine Hydac 0330 D 010 ONPSSFREE

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 90.5 mm
Inner Diameter 48.2 mm
Length 162.0 mm
Media Type Glass Fiber (Anti-Static)
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 20 BAR
Seal Nitrile
Temperature Range -30 - +100°C
