Summary

MicroFit MFHR50185 Replaces the Hydac 02062233

MICROFIT MFHR50185
MICROFIT MFHR50185
Representative product image Product image feedback

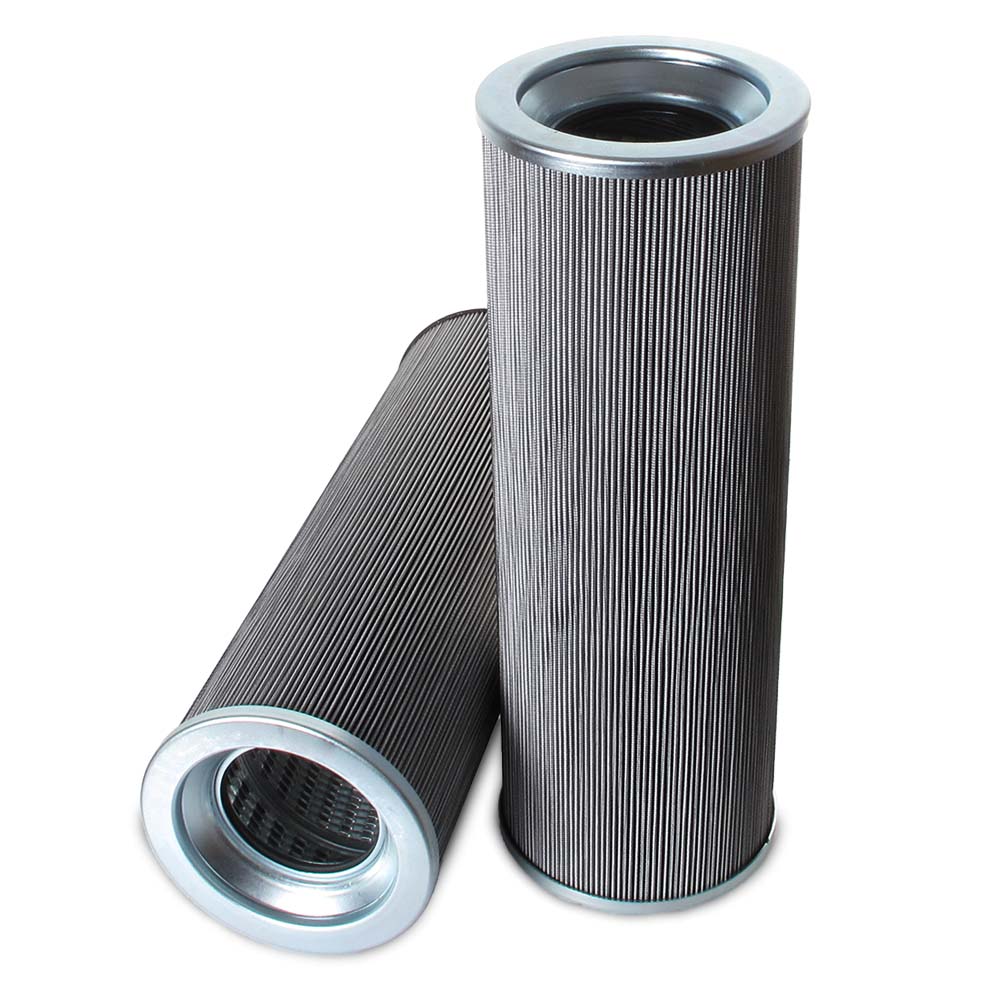

MicroFit® UltraGen III MFHR50185 Return Filter | Replaces the Hydac 02062233

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR50185 is the MICROFIT® approved replacement to the Hydac 02062233. Engineered and manufactured in Great Britain the MFHR50185

Price Match
$ 4,226.00
7.89 kg
0.0099 m³
United Kingdom
8421.99.90
3.58 kg
0.0099 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR50185 is the MICROFIT® approved replacement to the Hydac 02062233. Engineered and manufactured in Great Britain the MFHR50185

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 152.0 mm
Inner Diameter 83.4 mm
Length 427.0 mm
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Hydac Brand Logo

Same Fit-Form & Function

As the Genuine Hydac 02062233

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Return Filter
Outer Diameter 152.0 mm
Inner Diameter 83.4 mm
Length 427.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
