Summary

MicroFit MFHHP40882 Replaces the Hydac 01253111

01253111
01253111

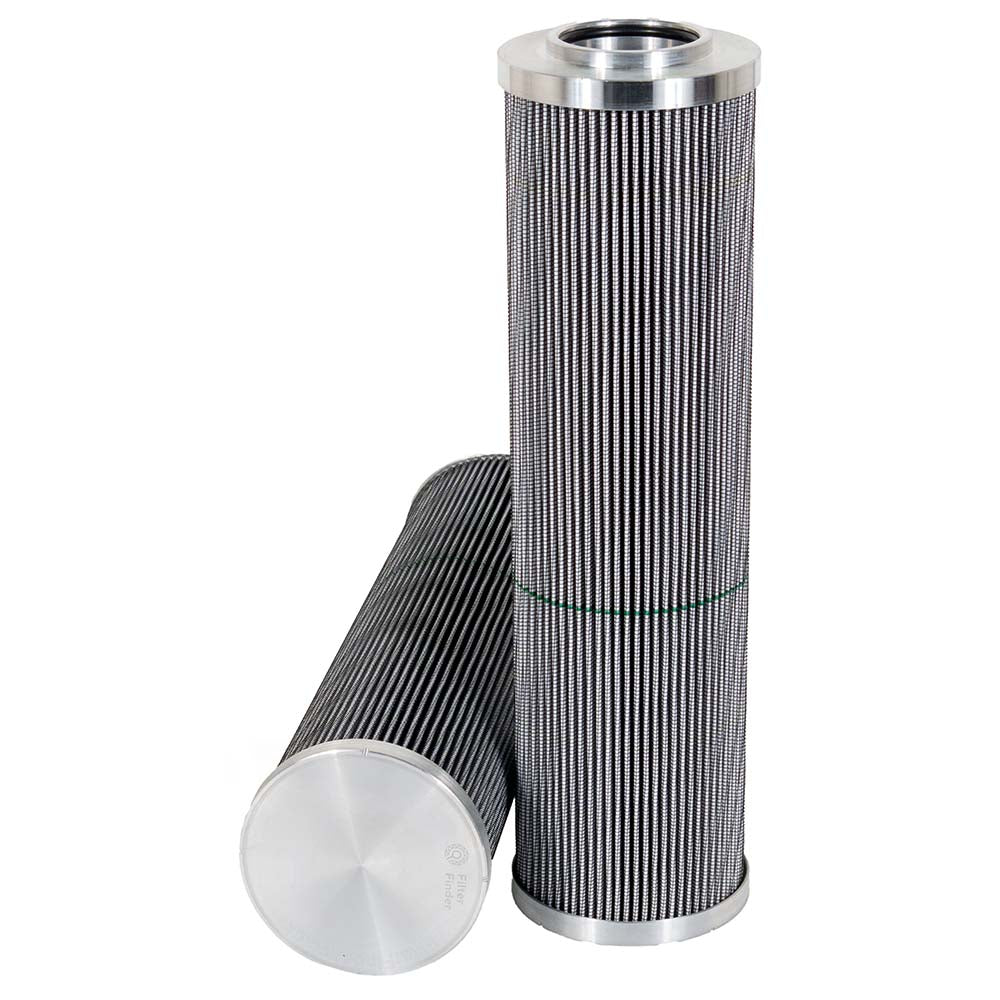

Representative product image Product image feedback

MicroFit® UltraGen III MFHHP40882 Pressure Filter | Replaces the Hydac 01253111

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHHP40882 is the MICROFIT® approved replacement to the Hydac 01253111. Engineered and manufactured in Great Britain the MFHHP40882

Price Match
$ 8,120.00
8.68 kg
0.004 m³
United Kingdom
8421.99.90
3.94 kg
0.0039 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP40882 is the MICROFIT® approved replacement to the Hydac 01253111. Engineered and manufactured in Great Britain the MFHHP40882

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 90.5 mm
Inner Diameter 48.1 mm
Length 487.0 mm
Δ Collapse Pressure 210 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Hydac Brand Logo

Same Fit-Form & Function

As the Genuine Hydac 01253111

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Pressure Filter
Outer Diameter 90.5 mm
Inner Diameter 48.1 mm
Length 487.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 210 BAR
Seal Viton
Temperature Range -25 - +120°C
